| Part Number | ESANMM85-S15C | Distance | 150m |
| Form Factor | QSFP+ | Connector | MPO-12 |
| Wavelength | 850nm | Transmitter | VCSEL |
| Receiver | PIN | Media | Multi-Mode Fiber(MMF) |
| Power Consumption | <3.5W | Protocol | 40G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Multi rate of up to 10.3125Gb/s per channel.
Transmission distance up to 150m OM3.
Hot-pluggable QSFP+ footprint.
Single 1x12 MPO receptacle.
Low power consumption.
Four-channel full-duplex transceiver module.
RoHS-6 compliant and lead-free.
+3.3V single power supply.
Support Digital Diagnostic Monitor interface.
Product Highlights

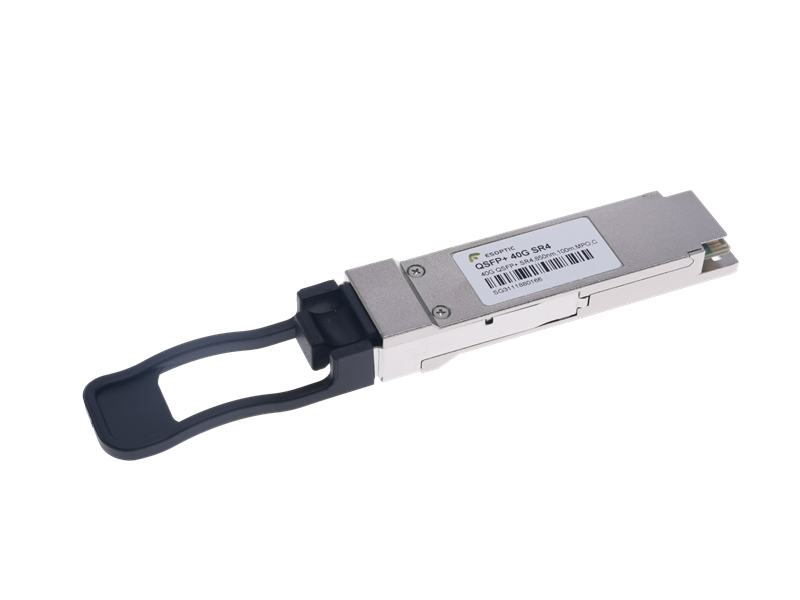

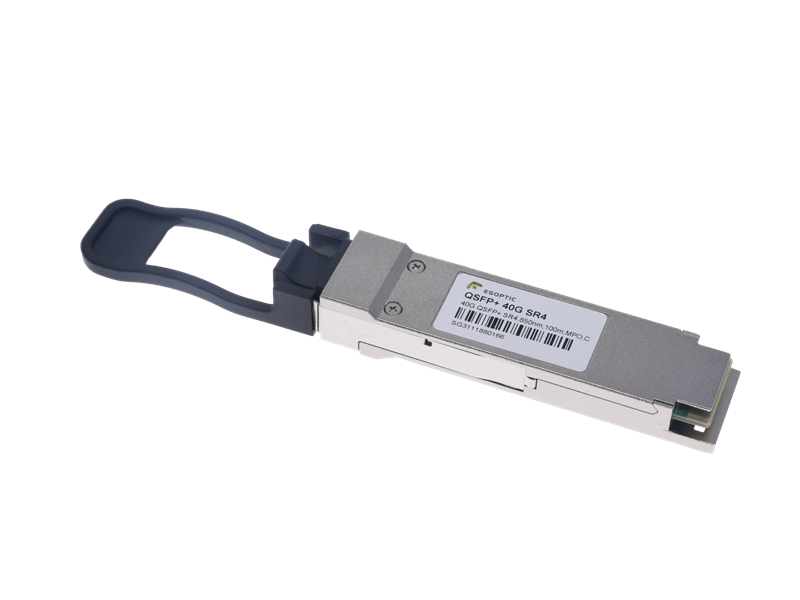

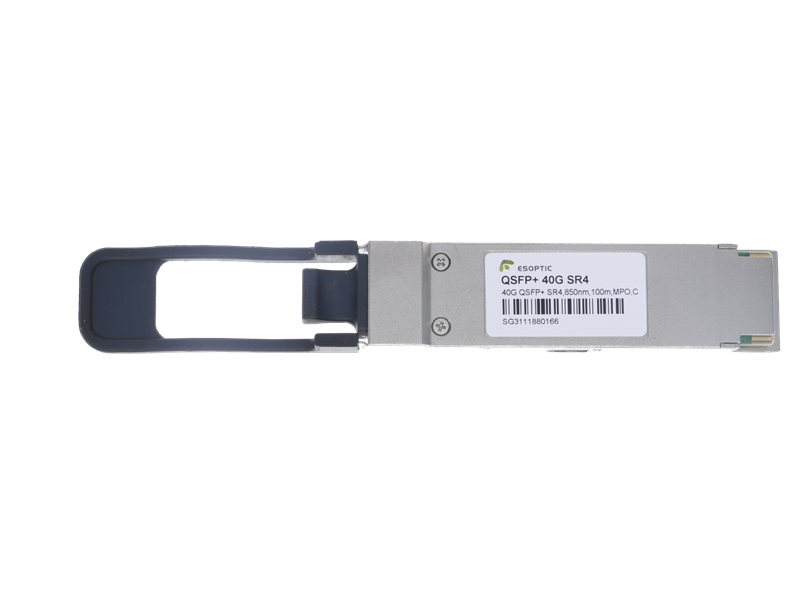

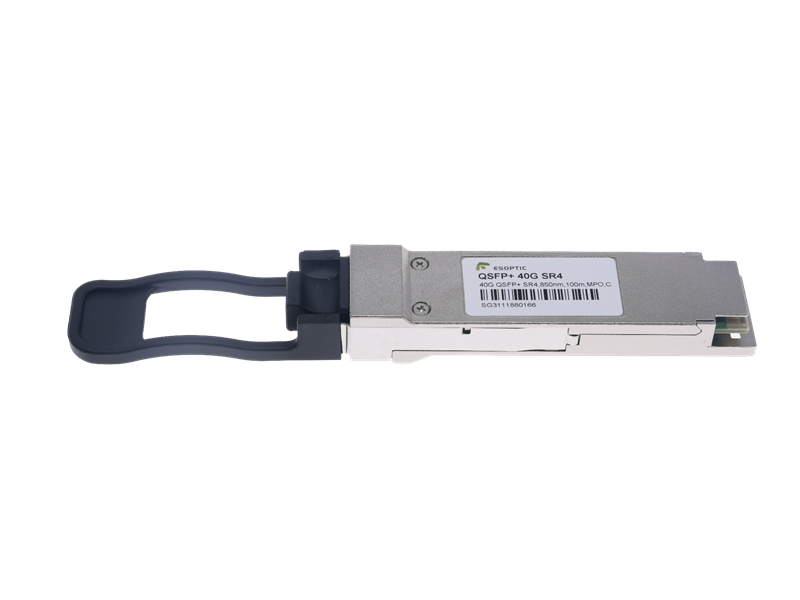

The 40G QSFP+ SR4 850nm 150m Transceiver is a high-performance optical module designed for short-range data transmission in data center and enterprise network environments. Supporting 40GBASE SR4 and QSFP 40G SR standards, this module ensures reliable and efficient data transfer over multimode fiber (MMF) with a reach of up to 150 meters. With its 850nm wavelength, the 40GB QSFP module provides low latency, high bandwidth, and energy-efficient performance, making it the ideal choice for high-density network applications. Whether for server-to-switch connections or within data center interconnects, this 40G SR4 transceiver delivers seamless connectivity and is perfect for next-generation networking needs, offering exceptional performance and ease of deployment.
Multimedia and Entertainment Networks
The 40G QSFP+ SR4 optical module supports multimedia and entertainment networks, providing high-speed connectivity for streaming HD and 4K video content, online gaming, and virtual reality applications. It enables reliable, high-bandwidth data transfer over short distances, ensuring a high-quality user experience with minimal buffering and low latency.
Manufacturing and Industrial Automation
The 40G QSFP+ SR4 module is suitable for manufacturing and industrial automation environments, providing high-speed connections between control systems, sensors, and machinery. It supports real-time data exchange and process monitoring, enhancing production efficiency and ensuring smooth operation of automated systems.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
