| Part Number | ESBQMM85-S10C | Distance | 100m |
| Form Factor | QSFP28 | Connector | MPO-12 |
| Wavelength | 850nm | Transmitter | VCSEL |
| Receiver | PIN | Media | Multi-Mode Fiber(MMF) |
| Power Consumption | <2.5W | Protocol | 100G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Supports 103.1Gb/s aggregate bit rate
4x25Gb/s electrical interface
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
Hot-pluggable QSFP28 footprint
Single MPO 12 receptacle
Low power Consumption
RoHS-6 compliant and lead-free
+3.3V single power supply
Support Digital Diagnostic Monitor interface
Product Highlights

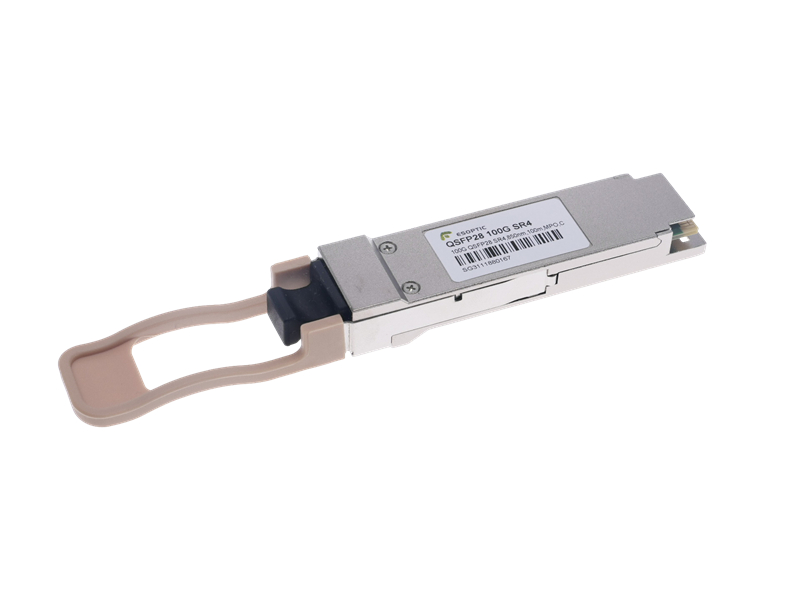

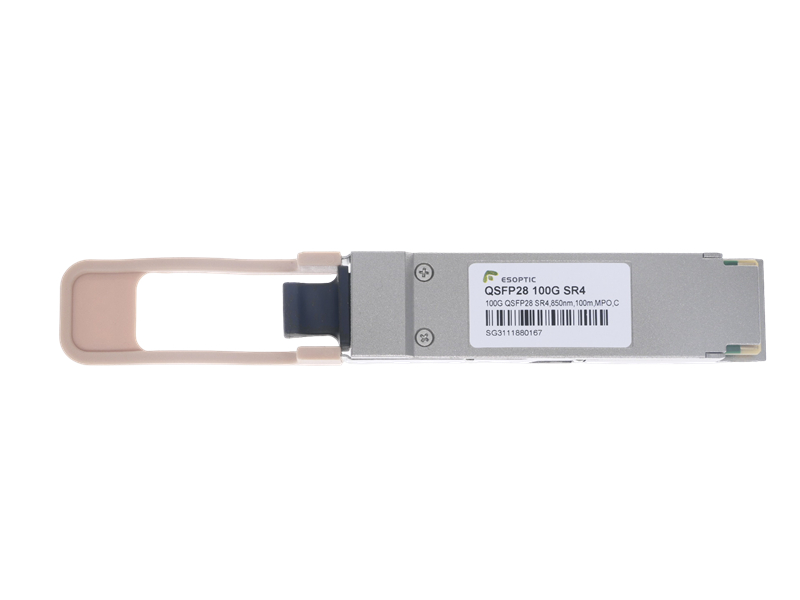

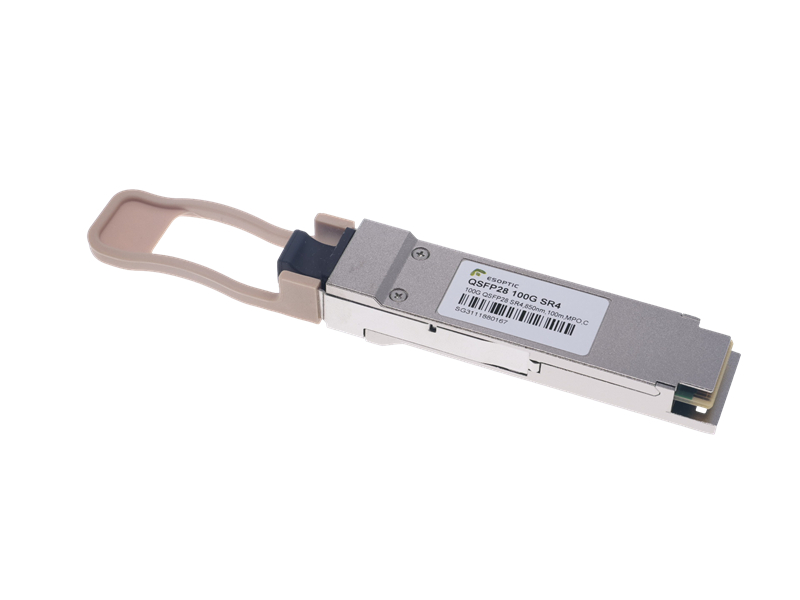

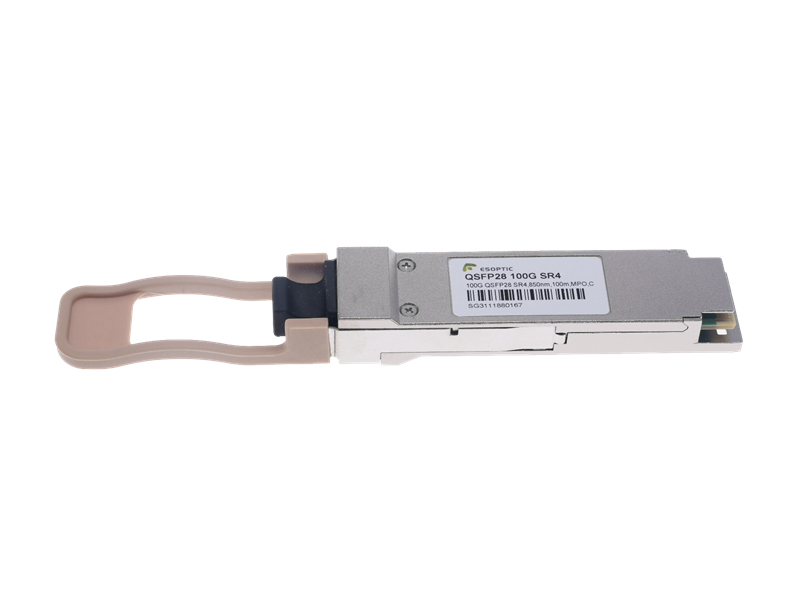

The 100G QSFP28 SR4 850nm 100m Transceiver is a high-performance optical module optimized for short-range data center and enterprise network applications. Supporting 100G SR4 and QSFP28 SR4 standards, this transceiver enables seamless and efficient data transmission over multimode fiber (MMF) for distances up to 100 meters. Utilizing advanced 850nm technology, the QSFP 100Gbase SR4 module offers high bandwidth, low latency, and energy-efficient performance. Designed for QSFP 100G SR4 applications, it is an ideal solution for high-density interconnects and next-generation networking requirements. Compact, reliable, and cost-effective, this 100G QSFP28 module ensures excellent performance and easy deployment in modern network environments.
Enterprise Campus Networks
The 100G QSFP28 SR4 module is ideal for enterprise campus networks, offering reliable, high-speed connectivity between buildings and floors. It ensures efficient communication between network devices, supporting applications like VoIP, video conferencing, and high-definition video streaming. This module is also suitable for upgrading older fiber infrastructures to meet growing bandwidth demands.
Research and Education Networks
The 100G QSFP28 SR4 module is ideal for research and education networks, supporting high-speed data transfer between research institutions, universities, and collaborative research centers. It enables the sharing of large datasets, supports scientific computing, and ensures the seamless operation of video lectures, virtual classrooms, and online education platforms.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
