| Part Number | ESGCRAAA-S10I/ESGCREEE-S10I | Distance | 100m |
| Form Factor | SFP | Connector | RJ45 |
| Power Consumption | <1.2W | Media | Core Cable |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ | Protocol | 1.25G Base Ethernet |
Up to 1.25Gb/s bi-directional data links
Hot-pluggable SFP footprint
Industrial case temperature range (-40°C to +85°C )
Fully metallic enclosure for low EMI
Low power dissipation (1.05 W typical)
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
10BASE-T,100BASE-T and 1000 BASE-T operation in host systems with SERDES interface
10/100/1000Mbps compliant in host systems with SGMII interface
Adaptive Triple-Speed Support
This 10/100/1000Mbps Copper SFP Transceiver supports auto-negotiation for 10Mbps, 100Mbps, and 1000Mbps speeds, allowing flexible deployment across diverse Ethernet networks.
Plug-and-Play with Hot-Swappable Design
As a hot-swappable copper SFP module, it enables effortless installation and replacement without interrupting the system or requiring a reboot.
RJ45 Interface for Cost-Effective Cabling
The SFP to RJ45 copper module supports transmission over Cat5e/6 cables, ideal for short-range applications such as server rooms, campus networks, and wiring closets.
Broad Compatibility Across Major Brands
This Gigabit RJ45 SFP module is compatible with a wide range of network devices from brands like Cisco, Juniper, Arista, MikroTik, and H3C.
Standards-Compliant for Reliable Connectivity
Fully compliant with IEEE 802.3ab and 1000BASE-T SFP transceiver standards, ensuring high performance and stable Ethernet transmission.

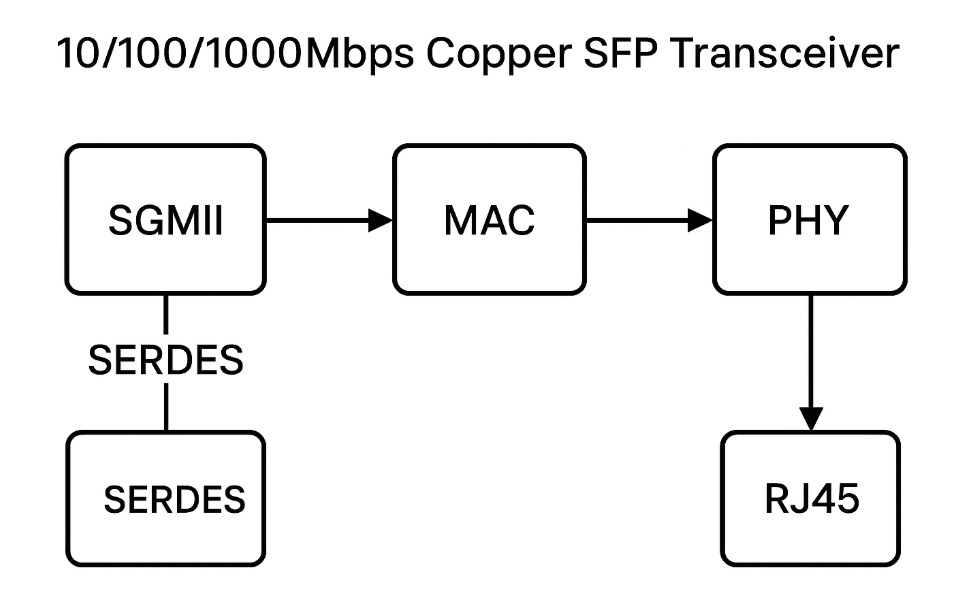

Integrated PHY with SGMII SERDES Architecture
Featuring a built-in high-performance PHY, the module utilizes the SGMII interface for communication with the host system, backed by SERDES technology for fast, low-latency signal transmission.
In modern data centers, replacing aging equipment with more compact and efficient devices is essential. The 10/100/1000Mbps Copper SFP Transceiver is ideal for upgrading the access layer of switches or servers.
By using SFP to RJ45 copper modules, network engineers can reuse existing Cat5e/Cat6 cabling while ensuring compatibility with gigabit-capable devices. This approach minimizes costs and downtime, especially with hot-swappable copper SFP modules that support on-the-fly installation.
For enterprise buildings with structured cabling systems, the Gigabit RJ45 SFP module offers a flexible solution to extend network connectivity between floors or departments.
As a 1000BASE-T SFP transceiver, it delivers high-speed Ethernet over standard RJ45 ports, integrating easily with existing switches and routers. Its plug-and-play nature simplifies deployment, making it a reliable choice for long-term campus networking plans.
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
