| Connector | MPO-12/16/24 | Return Los | ≥25dB |
| Fiber Model | MM (OM3/OM4/OM5) | Male/Femal | Customized |
Endface | PC / APC(8°) | Cable Length | 0.2m~30m |
Insertion Loss | ≤0.7 dB（standard） / 0.35 dB（low loss） |
Product Features
8/12/16/24/32 Multi-core optical fibers are available
Single-mode OM3/OM4/OM5 Multiple optical fiber types
0.35dB ultra-low loss
can be equipped with drawing mesh for easy installation and maintenance
Compatible with 10G/40G/100G
Comply with the relevant TIA/IEC standards
Comply with RoHS/REACH requirements Commercial: -10℃ to +70℃
Industrial:-40℃ to +85℃
Product Highlights

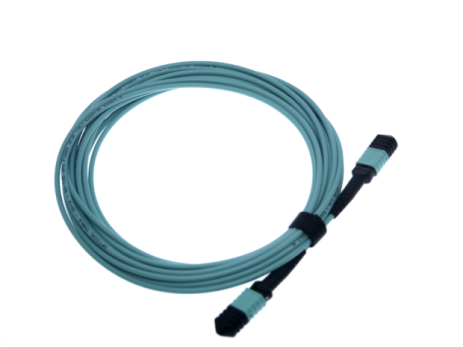

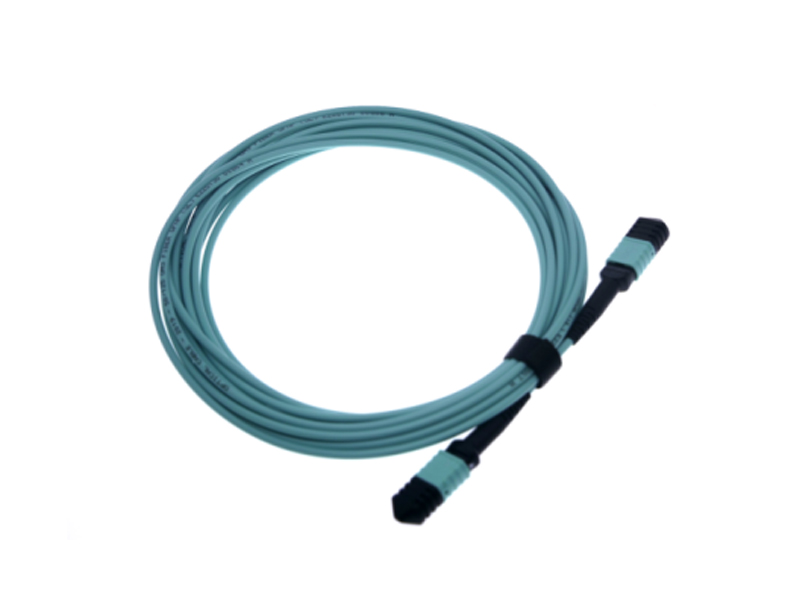

Discover unparalleled connectivity with our MPO Trunk Cable Patchcord, seamlessly integrating the robustness of MPO Cable technology with the advanced fiber optic performance of Fiber Optic MPO. Engineered for high-density applications, our patchcord leverages MTP MPO connectors for unparalleled reliability and scalability, ensuring seamless integration with both MTP Cable and MTP MTP Cable systems. Experience superior signal transmission with minimal loss, making it the ideal choice for next-generation data centers and high-speed networks.
High-Density Fiber Management
The MPO Trunk Cable Patchcord is designed for high-density fiber management in enterprise and telecom networks. Its compact, multi-fiber connectors reduce cabling bulk and improve cable management efficiency. This is especially important in environments where space is limited, such as central offices or enterprise data centers. The cable supports quick deployment and easy scalability for network upgrades, accommodating the growing demand for higher bandwidth.
Optical Network Infrastructure
In optical network infrastructure, the MPO Trunk Cable Patchcord supports the backbone of metropolitan area networks (MANs), wide area networks (WANs), and long-haul optical networks. Its high fiber count and reliable performance enable the transmission of large volumes of data over long distances, crucial for applications like telecommunications, internet service providers, and carrier networks. The patchcord ensures seamless integration and high-speed data transmission, which is vital for modern optical communications.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of Active Optical Cable products
Put AOC module into electrostatic bag (note module direction) and label.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.
According to the packing quantity requirements, put the products packed in anti-static ziplock bags into packaging cartons.
The space left in the trunk must be filled with anti-static foam to ensure that it will not be damaged in transit.
The outer case label is attached to the side position of the outer case.Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 4 layers of wrapping film protection.
※The space in the box and the space in the mantissa box shall be filled with foam.
