| Part Number | ESWSDT11-M01C | Cable Length | 0.5m~3m |
| Form Factor | QSFP-DD | Power Consumption | <0.5W |
| Wire AWG | 28~30AWG | Jacket Material | PVC |
| Case Temperature(℃) | 0℃ to +70℃ | Application | 400G Ethernet |
Product Features
Compatible with IEEE 802.3bj and IEEE 802.3cd
Supports aggregate data rates of 400Gbps(PAM4)
Optimized construction to minimize insertion loss and cross talk
Pull-to-release slide latch design
28AWG through 30AWG cable
Straight and break out assembly configurations available
Customized cable braid termination limits EMI radiation
Customizable EEPROM mapping for cable signature
RoHS omplia
Product Highlights

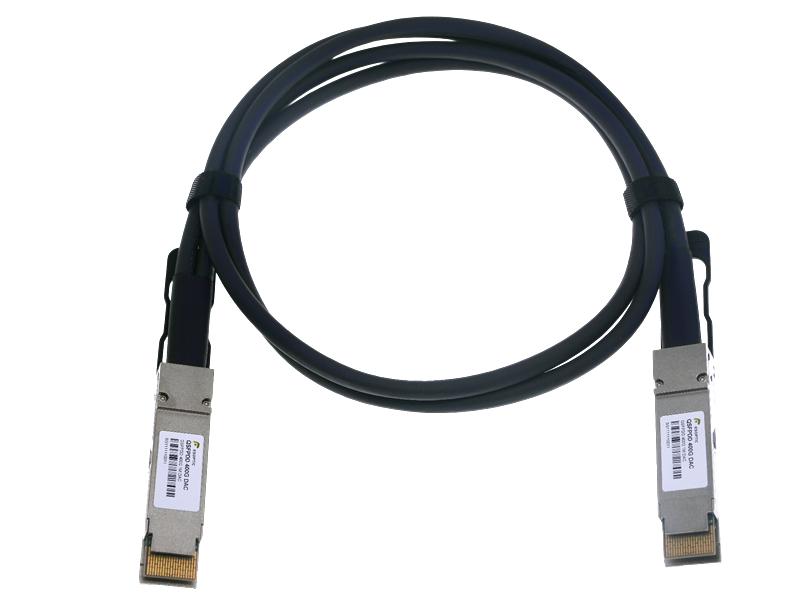

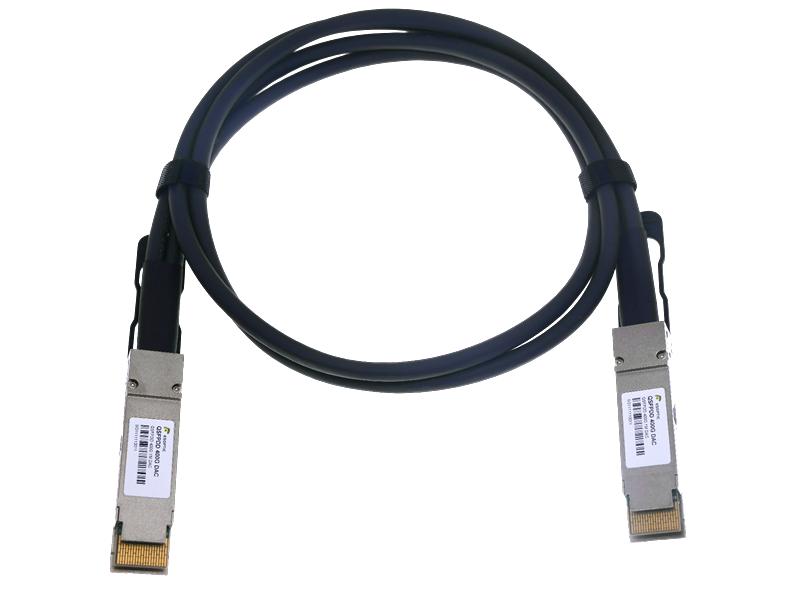

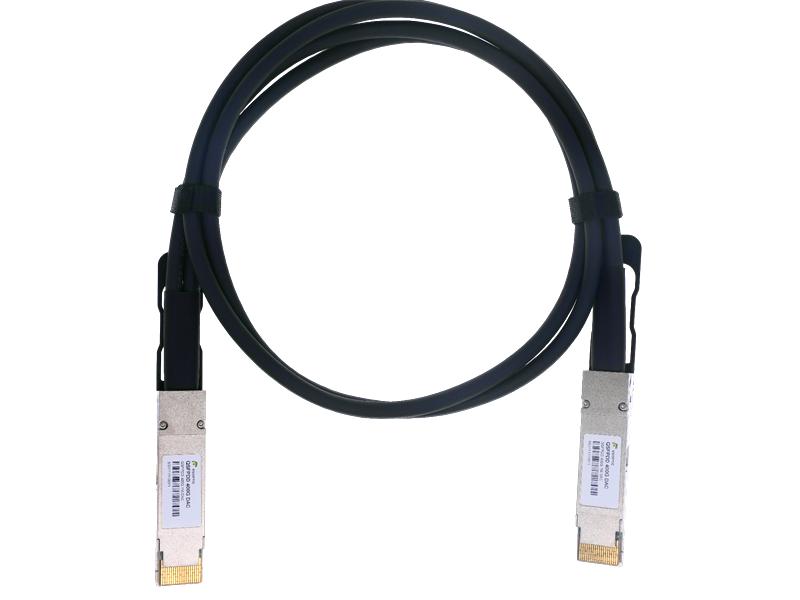

Experience the next level of high-speed connectivity with our 400G QSFP-DD DAC 1M. This QDD 400G DAC, also known as the 400G DAC Cable, represents the pinnacle of direct attach copper cable technology. Featuring ultra-low latency and exceptional signal integrity, the 400G DAC ensures seamless data transfer rates up to 400Gbps. Specifically, our 400G DAC 1m utilizes Twinax Cable, which is designed to minimize signal loss and electromagnetic interference, providing a robust and reliable connection for your mission-critical applications. Perfect for high-density server environments, this DAC cable is the ideal solution for maximizing performance and minimizing latency in your 400G network infrastructure.
Data Aggregation Networks
The 400G QSFP-DD DAC 1M is perfect for data aggregation networks, where multiple high-speed links must converge into a central switch or router. It enables high-capacity interconnects between network elements, such as edge switches and core routers, facilitating the aggregation of traffic from various sources. This capability supports large-scale applications such as video streaming, content delivery, and enterprise-wide network management, ensuring efficient data flow across long distances.
Cloud-to-Cloud Connectivity
The 400G QSFP-DD DAC 1M is used for cloud-to-cloud connectivity, where large-scale data needs to be transferred between different cloud platforms or data centers. This DAC ensures high-speed and low-latency interconnection between private, public, or hybrid cloud networks, supporting businesses that rely on cloud-based services and applications. It is critical for data replication, cloud backup, disaster recovery, and the efficient synchronization of cloud resources across multiple data centers.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of Direct Attach Copper products
Put DAC module into electrostatic bag (note module direction) and label.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.
According to the packing quantity requirements, put the products packed in anti-static ziplock bags into packaging cartons.
The space left in the trunk must be filled with anti-static foam to ensure that it will not be damaged in transit.
The outer case label is attached to the side position of the outer case.Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 4 layers of wrapping film protection.
※The space in the box and the space in the mantissa box shall be filled with foam.
