| Part Number | ESXSMB31-S50C | Distance | 500m |
| Form Factor | OSFP | Connector | MPO-12(APC) |
| Wavelength | 1310nm | Transmitter | DFB |
| Receiver | PIN | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <10W | Protocol | 400G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ |
Product Features
Data Rate: Up to 425Gbps (4x100Gbps)
Supported Applications:
400GBASE-DR4
200GBASE-FR4 (compatible modes)
Compliant with OSFP MSA Rev5.0
Transmission Distance: Maximum link length of 500m on SMF
Key Components:
4x DFB laser arrays and 4x PIN PD arrays
Optical Connector: MPO-12(APC)
Management Interface: CMIS 4.0 compliant
Power Supply: +3.3V single power supply
Product Highlights

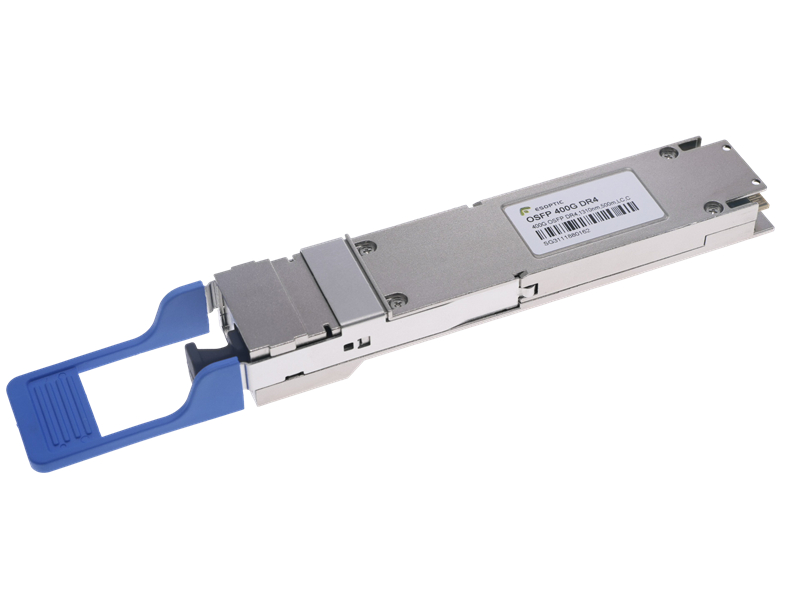

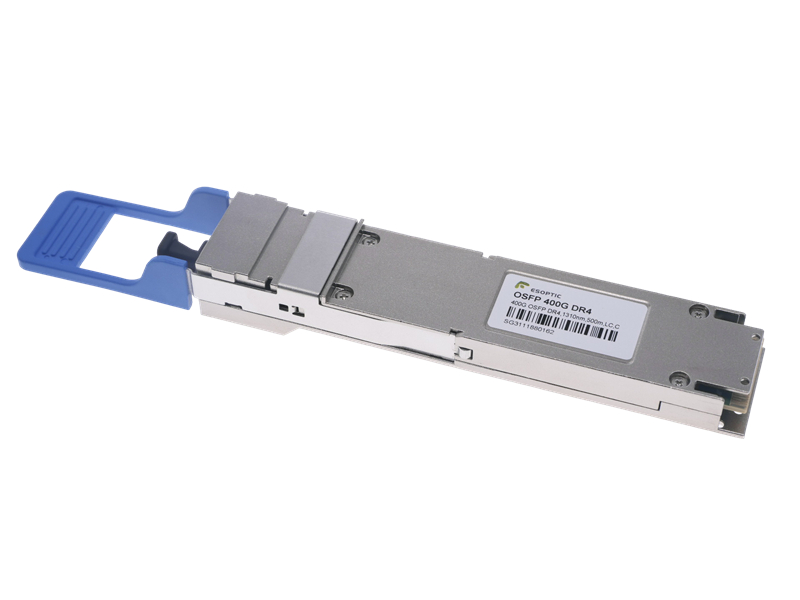

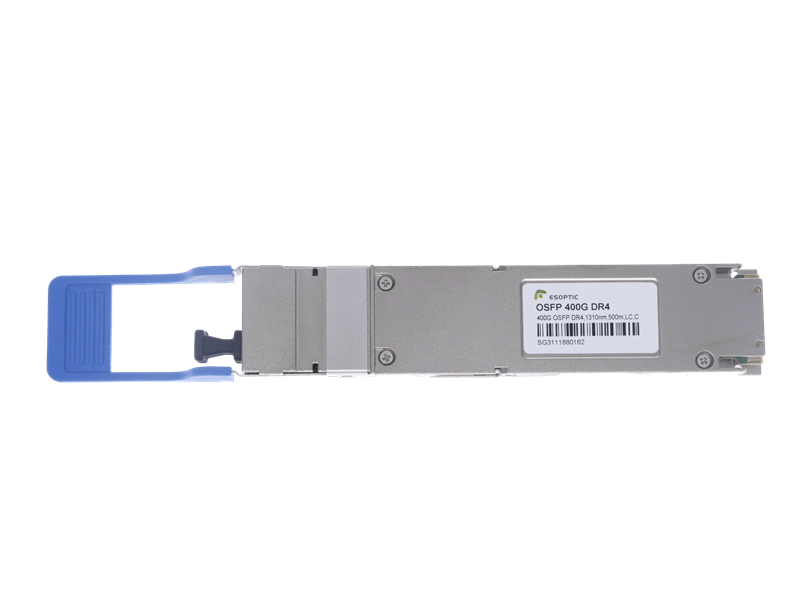

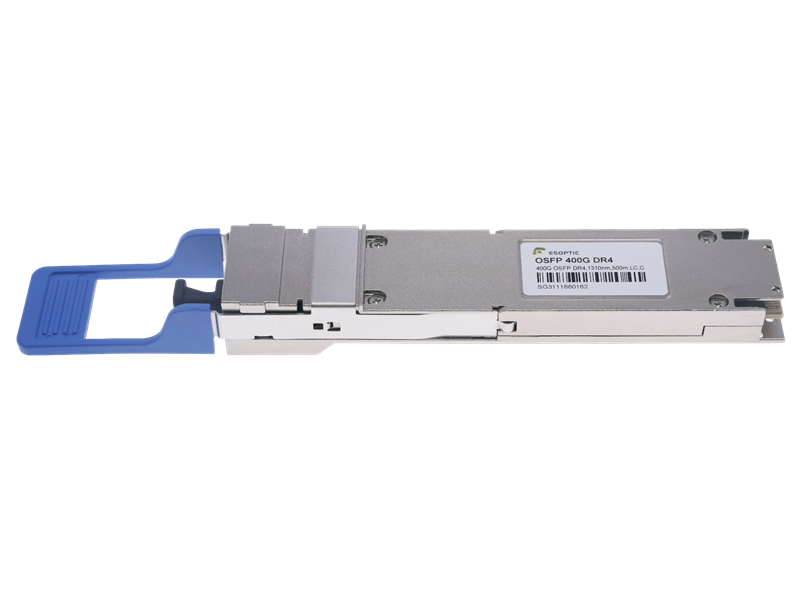

Introducing our cutting-edge 400G OSFP DR4 1310nm 500m transceiver, the ultimate solution for high-speed, long-distance data transmission. Engineered with advanced technology, this 400G Transceiver offers unparalleled performance and reliability, making it ideal for demanding network infrastructures. The 400G OSFP DR4 leverages the power of dense wavelength division multiplexing (DWDM) to deliver 400Gb/s of bandwidth over single-mode fiber (SMF) at a distance of 500 meters.
Our 400G DR4 transceiver comes equipped with a comprehensive DDM (Digital Diagnostic Monitoring) feature, providing real-time monitoring and diagnostics of optical performance parameters. This SMF DDM Optical Transceiver ensures optimal network performance and ease of maintenance, reducing downtime and operational costs.
Experience the future of high-speed networking with our 400G OSFP DR4 1310nm 500m transceiver – the perfect blend of performance, reliability, and advanced monitoring capabilities.
Financial Services and Trading Networks
The 400G OSFP DR4 1310nm 500m module supports the high-speed, low-latency requirements of financial services and trading networks. It ensures fast data transmission between data centers and trading floors, enabling real-time processing of transactions and market data analysis, which is crucial for competitive financial markets.
AI and Machine Learning Networks
Designed for AI and machine learning networks, the 400G OSFP DR4 module facilitates high-speed data transfers between computing nodes. This enhances the efficiency of AI model training and inference, making it suitable for deep learning, neural network applications, and large-scale AI systems.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
