| Part Number | ESWSMM85-S10C | Distance | 100m |
| Form Factor | QSFP-DD | Connector | MPO-16(APC) |
| Wavelength | 850nm | Transmitter | VCSEL |
| Receiver | PIN | Media | Multi-Mode Fiber(MMF) |
| Power Consumption | <9W | Protocol | 400G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ |
Product Features
Data rate: 400Gbps with PAM4 encoding.
Supports QSFP-DD MSA standard.
High-speed I/O electrical interface (400GAUI-8).
Maximum reach: 100m on OM4 multimode fiber.
8x VCSEL arrays and PIN PDs for parallel optical channels.
MPO-16/APC optical connector for reliable connections.
Advanced power consumption: <12W.
Operating temperature range: Commercial: 0°C to 70°C.
Product Highlights

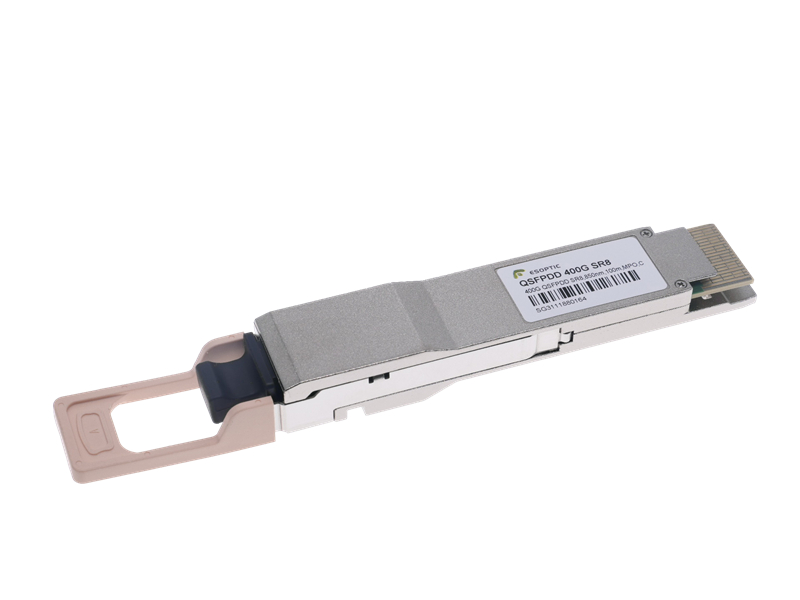

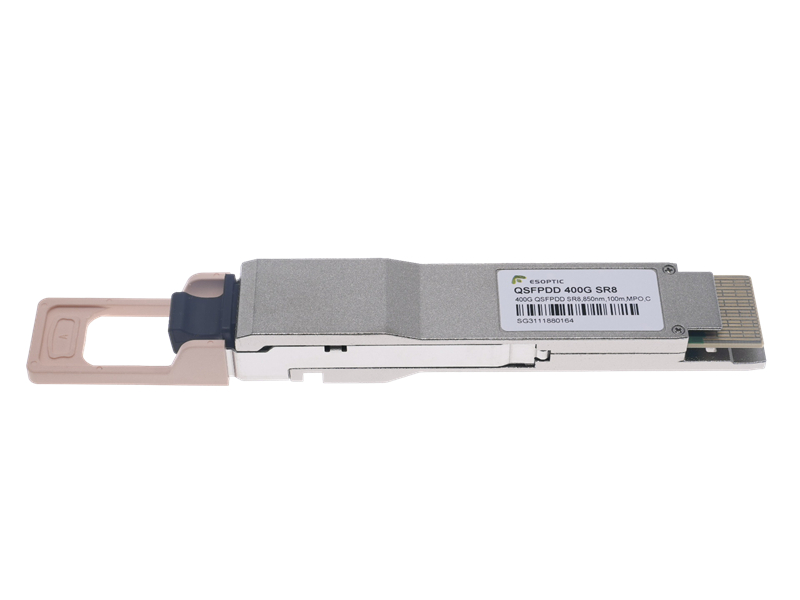

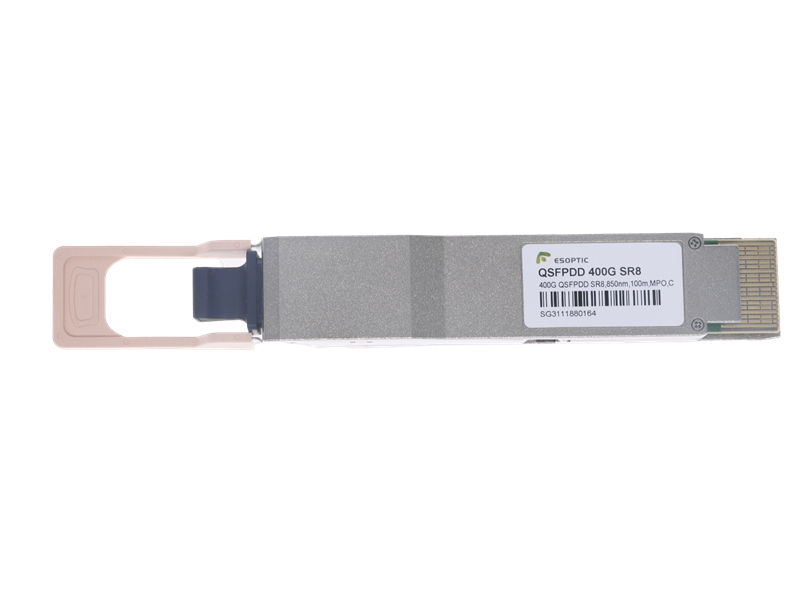

Discover the future of high-speed networking with our cutting-edge 400G QSFPDD SR8 850nm 100m optical module. Engineered for exceptional performance and reliability, the 400G SR8 solution leverages the advanced QSFP DD SR8 form factor to deliver unparalleled bandwidth and reach over short distances. Whether you're deploying in data centers, cloud infrastructures, or high-performance computing environments, our 400G QDD SR8 module ensures seamless integration and robust data transmission. Experience the power of QDD 400G SR8 technology today, and revolutionize your network with the 400G QSFP DD SR8, designed to push the boundaries of what's possible.
Video Streaming and Content Delivery
The 400G QSFPDD SR8 850nm 100m module supports the high-bandwidth demands of video streaming and content delivery networks (CDNs). It enables the fast and reliable transmission of high-definition and 4K/8K video content across data centers, ensuring smooth video playback and enhanced user experience.
Cloud Infrastructure and Big Data Solutions
The 400G QSFPDD SR8 module is ideal for cloud infrastructure providers and big data environments. It facilitates fast, high-capacity data transfers between cloud data centers and storage systems, enabling quick retrieval of massive datasets required for big data analytics, machine learning, and real-time decision-making.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
