| Part Number | ESJMAA31-M01C | Case Temperature(℃) | 0℃ to +70℃ |
| Form Factor | SFP28 | Application | InfiniBand QDR |
| Wavelength | 850nm | Cable Length | 1m~50m |
| Jacket Material | LSZH | Power Consumption | <1W |
Product Features
Up to 25.7813Gbps Data Links
850nm VCSEL laser transmitter and PIN/TIA receiver
Maximum link length of 100m on OM4 MMF
Hot-pluggable SFP+ footprint
Power consumption less than 1W
RoHS compliant and lead-free
Support Digital Diagnostic Monitor interface
+3.3V Single power supply
Product Highlights

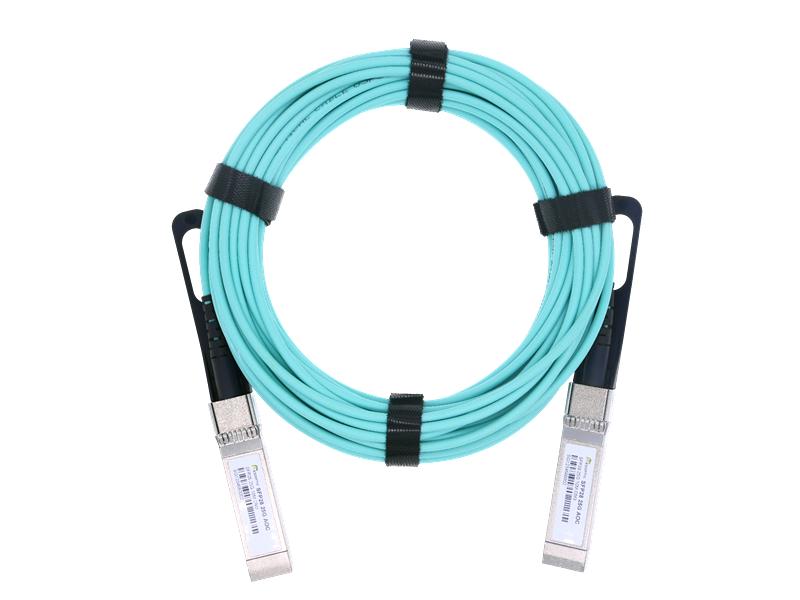

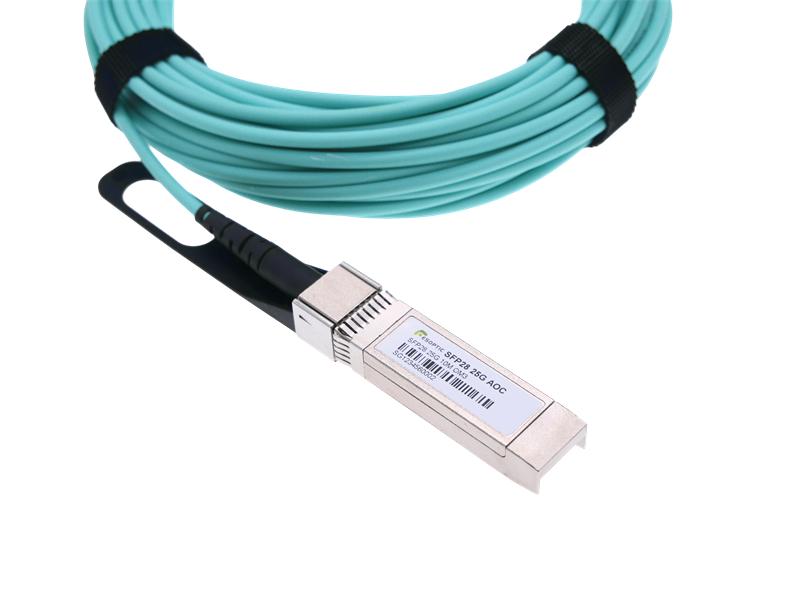

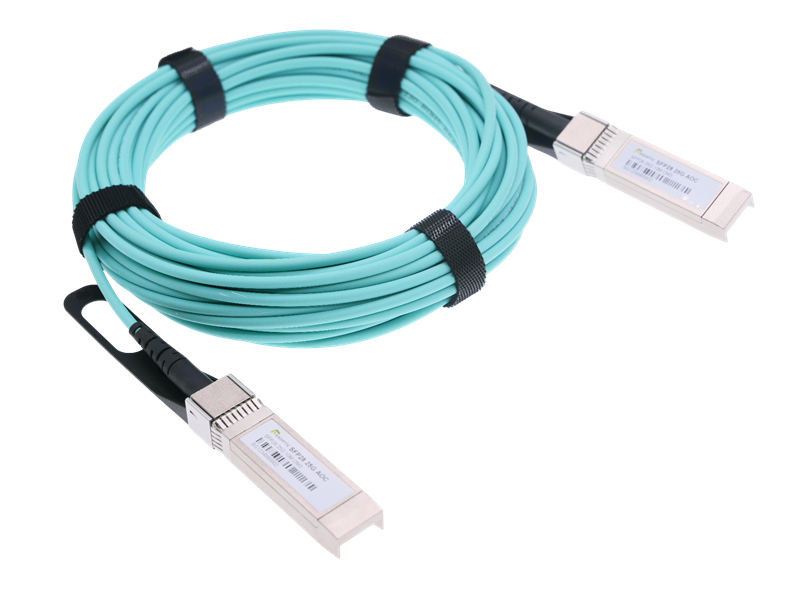

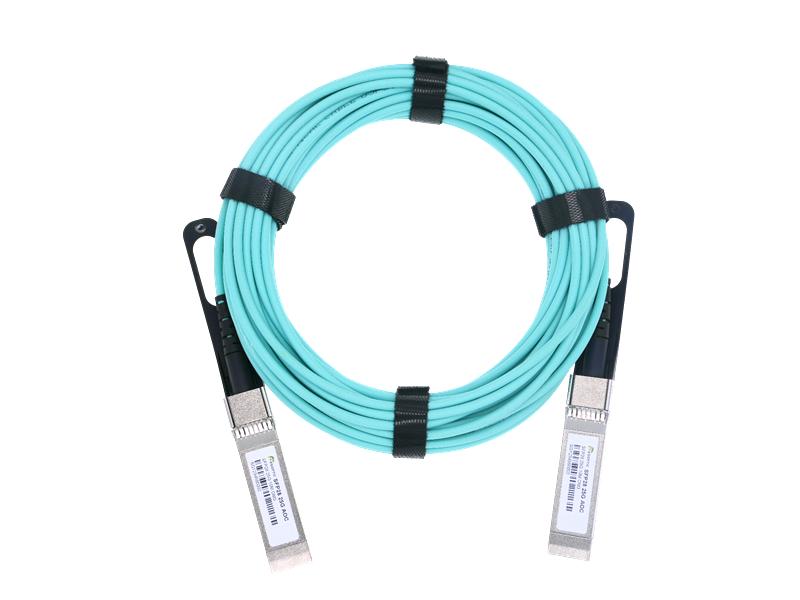

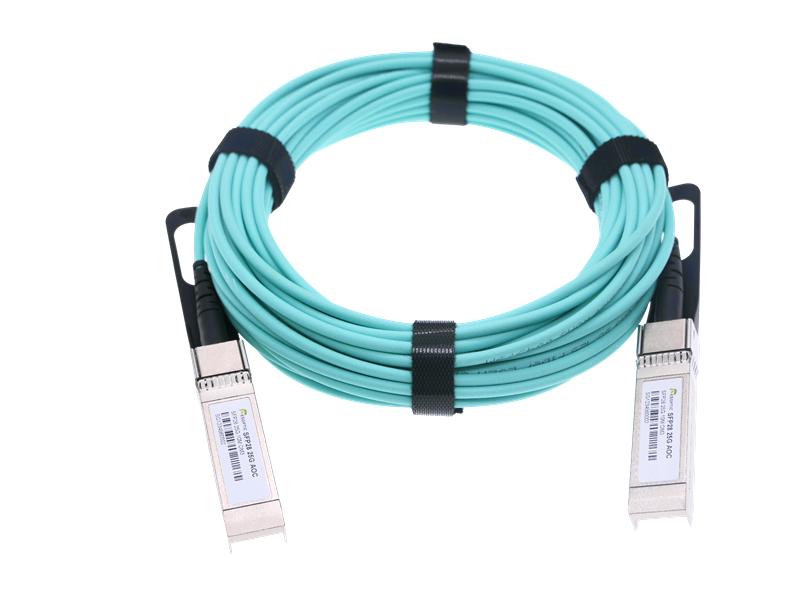

Introducing the AOC 25G – the 25G SFP28 AOC Active Optical Cable, designed for seamless integration and high-speed data transfer. Our SFP 25G AOC10M offers unparalleled performance with its robust SFP AOC technology, ensuring reliable and efficient data communication over a 10-meter cable length. The 25G AOC Cable provides exceptional bandwidth and low latency, making it the ideal solution for demanding network environments. Experience the future of connectivity with our 25G AOC, engineered for optimal performance and durability.
Virtual Desktop Infrastructure (VDI)
The 25G SFP28 AOC is often used in Virtual Desktop Infrastructure (VDI) setups where organizations provide remote access to desktop environments via a centralized server. It allows for the seamless transfer of data between servers, virtual machines, and end-user devices, providing employees with fast and reliable access to virtual desktops. Its low latency and high throughput make it an essential component for delivering high-performance VDI experiences, especially when dealing with graphically intensive applications.
Digital Twin Technology
The 25G SFP28 AOC is a critical component in digital twin technologies, which create virtual replicas of physical objects or systems. These technologies rely on real-time data feeds from sensors and IoT devices to simulate, analyze, and optimize physical systems. The AOC enables the high-speed transfer of data between the physical assets (e.g., machinery, vehicles) and their digital counterparts, allowing engineers to monitor, predict, and enhance performance in industries such as manufacturing, automotive, and urban planning.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of Active Optical Cable products
Put AOC module into electrostatic bag (note module direction) and label.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.
According to the packing quantity requirements, put the products packed in anti-static ziplock bags into packaging cartons.
The space left in the trunk must be filled with anti-static foam to ensure that it will not be damaged in transit.
The outer case label is attached to the side position of the outer case.Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 4 layers of wrapping film protection.
※The space in the box and the space in the mantissa box shall be filled with foam.
