| Part Number | ESCRAA32-M01C | Case Temperature(℃) | 0℃ to +70℃ |
| Form Factor | QSFP56 to 2QSFP28 | Application | InfiniBand QDR |
| Wavelength | 850nm | Cable Length | 1m~50m |
| Jacket Material | LSZH | Power Consumption | <6.5W ; <2.5W |
Product Features
200Gb/s to 2x100Gb/s data rate
4x26.5625GBd(PAM4)electrical interface
VCSEL Transmitter
PIN and TIA array on the receiver side
Hot-pluggable QSFP56 footprint
Low power Consumption
RoHS-6 compliant and lead-free
+3.3V single power supply
Support Digital Diagnostic Monitor interface
Product Highlights

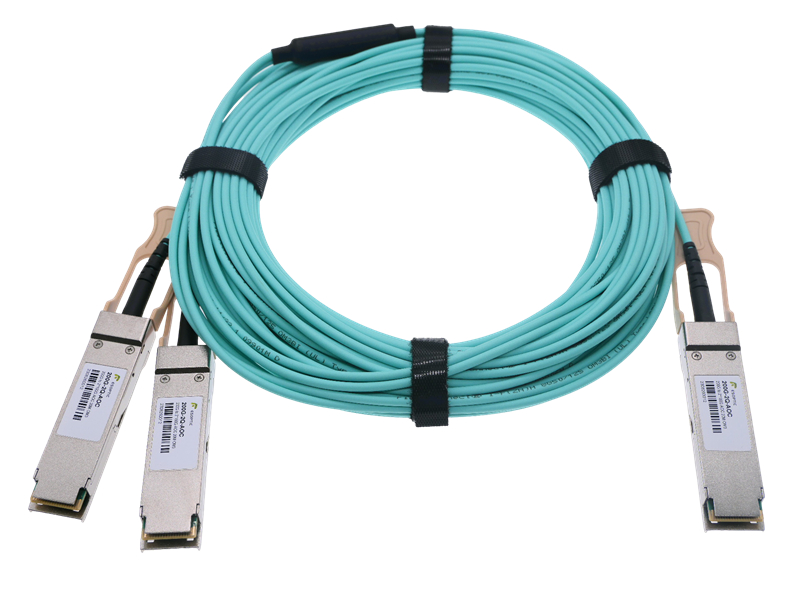

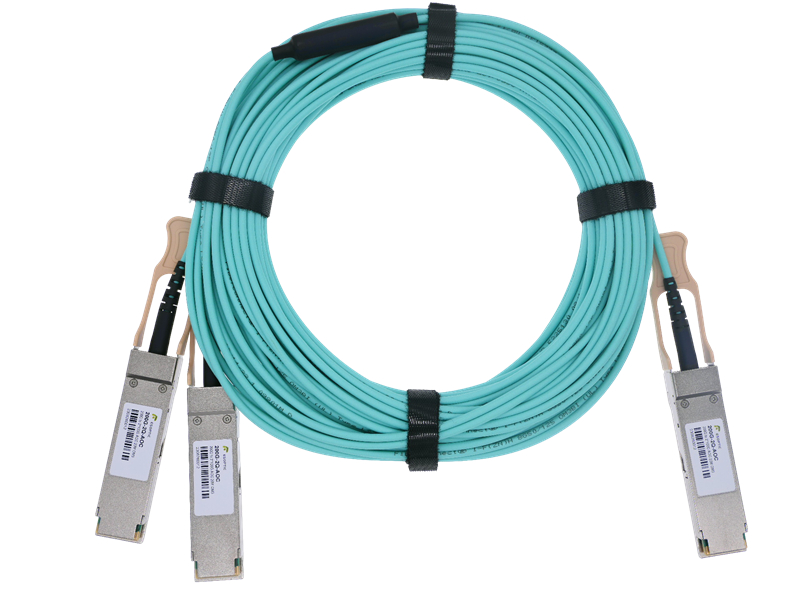

Revolutionize your network's performance with our 200G to 2x100G AOC 1M OM3. This cutting-edge QSFP56 to 2xQSFP56 breakout cable offers unparalleled versatility by splitting a single 200Gbps link into two independent 100Gbps channels. Designed as a premium AOC DAC Cable, it leverages active optical components to minimize signal loss and maximize bandwidth over short distances, all while utilizing OM3 multimode fiber for superior transmission quality. Our QSFP56 to QSFP56 Breakout Cable is the perfect choice for modern data centers seeking to optimize their network infrastructure, providing seamless integration with existing QSFP56-enabled equipment. Experience the future of high-speed networking with our 200G to 2x100G Breakout Cable, which not only meets current bandwidth demands but also scales effortlessly to accommodate future growth.
Distributed Cloud Storage
The 200G to 2*100G AOC 1M OM3 module is ideal for distributed cloud storage systems that require fast, reliable, and scalable interconnects between storage nodes. By converting a single 200G link into two 100G links, it allows more efficient data distribution across storage devices in cloud-based infrastructures. The module's high data rate ensures quick data transfers between storage arrays, helping enterprises scale their storage systems to handle massive amounts of data for backup, disaster recovery, and cloud-based file sharing applications.
Real-Time Data Analytics
The 200G to 2*100G AOC 1M OM3 module is an excellent solution for real-time data analytics systems, where high-speed data transfer is critical to achieving low-latency results. In fields like financial services, healthcare, and market research, rapid processing and analysis of large datasets are essential. The ability to split the 200G connection into two 100G links enables flexible data flows across the system, ensuring that analytics platforms can quickly process and respond to incoming data streams in real time. This module ensures minimal downtime and efficient data handling, crucial for business operations relying on fast decision-making.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of Active Optical Cable products
Put AOC module into electrostatic bag (note module direction) and label.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.
According to the packing quantity requirements, put the products packed in anti-static ziplock bags into packaging cartons.
The space left in the trunk must be filled with anti-static foam to ensure that it will not be damaged in transit.
The outer case label is attached to the side position of the outer case.Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 4 layers of wrapping film protection.
※The space in the box and the space in the mantissa box shall be filled with foam.
