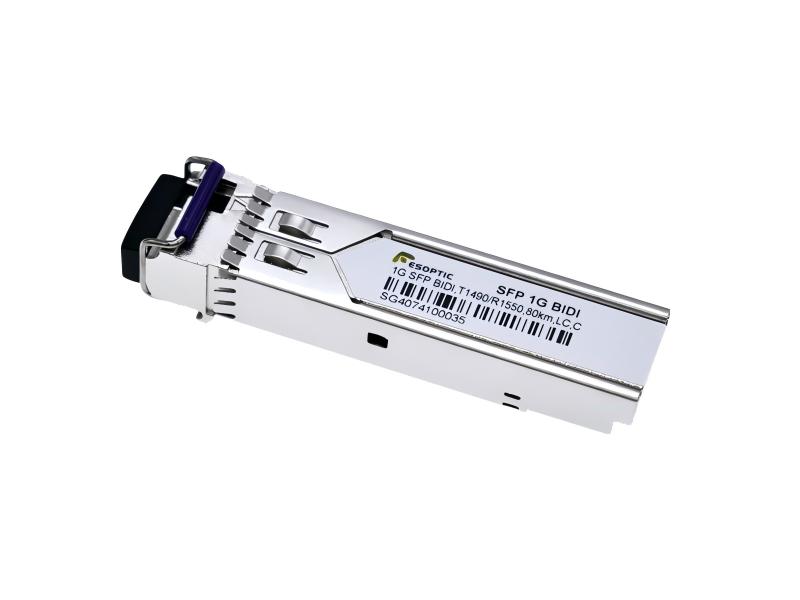

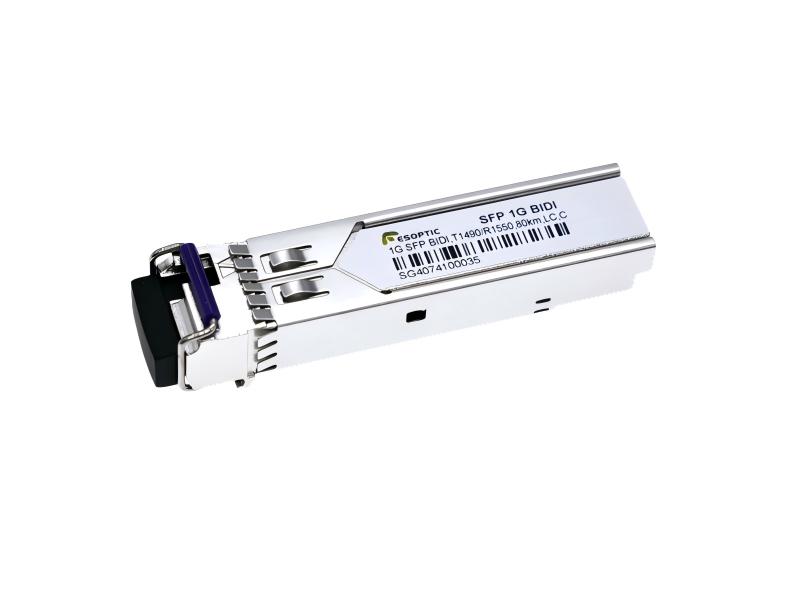

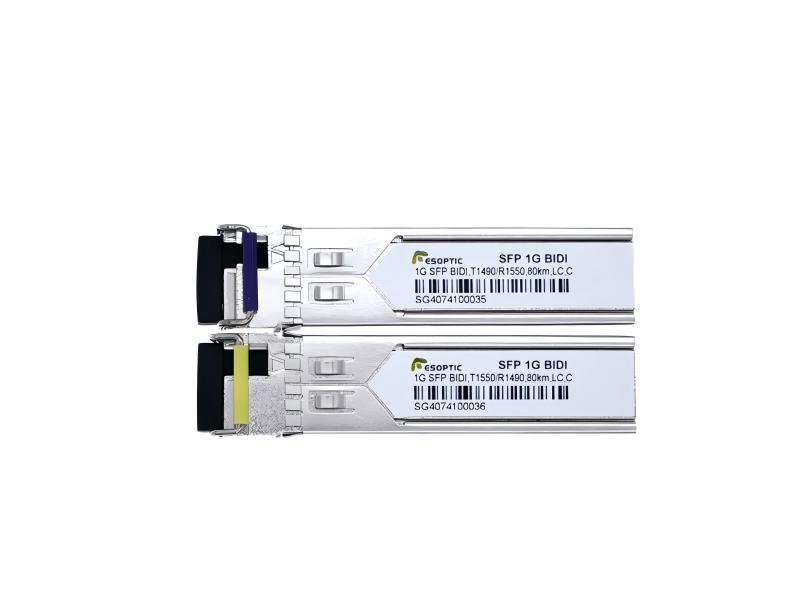

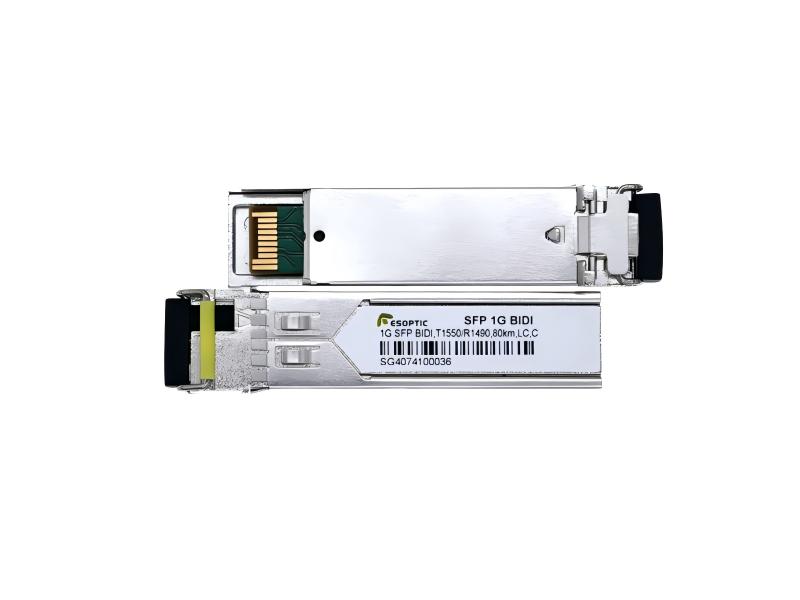

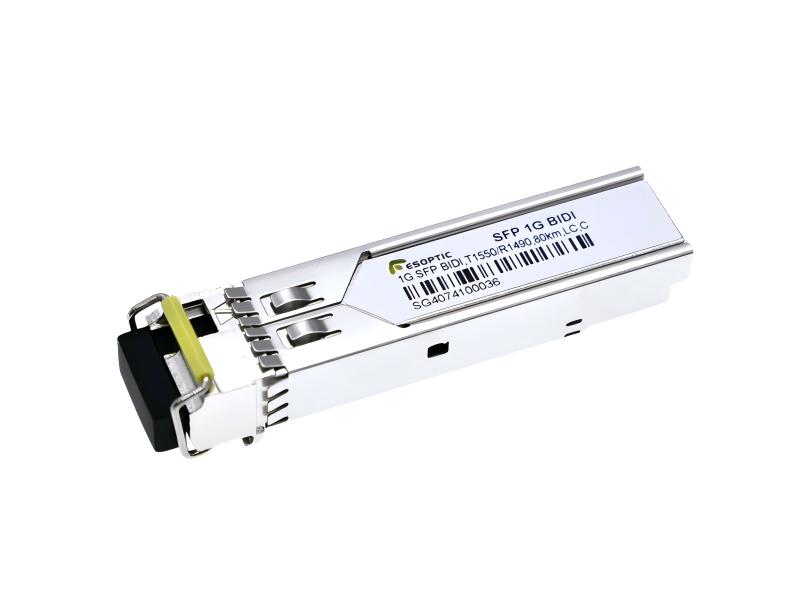

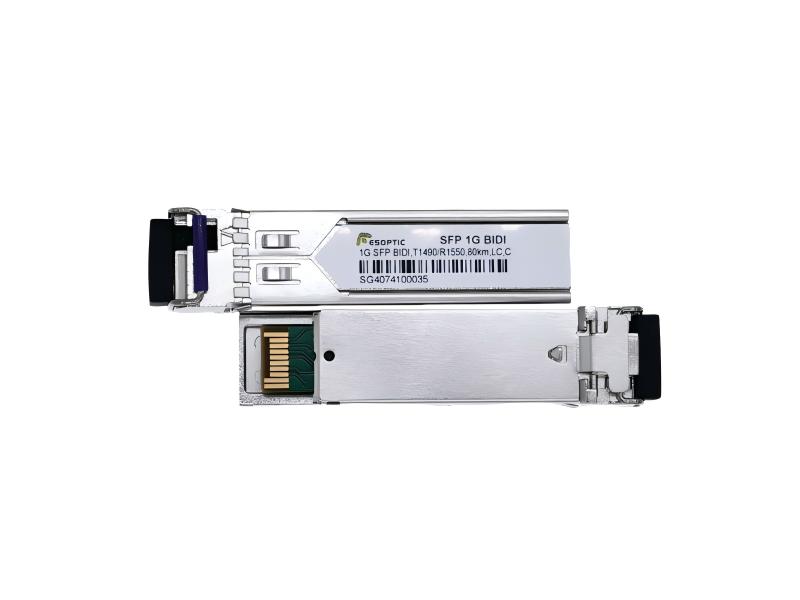

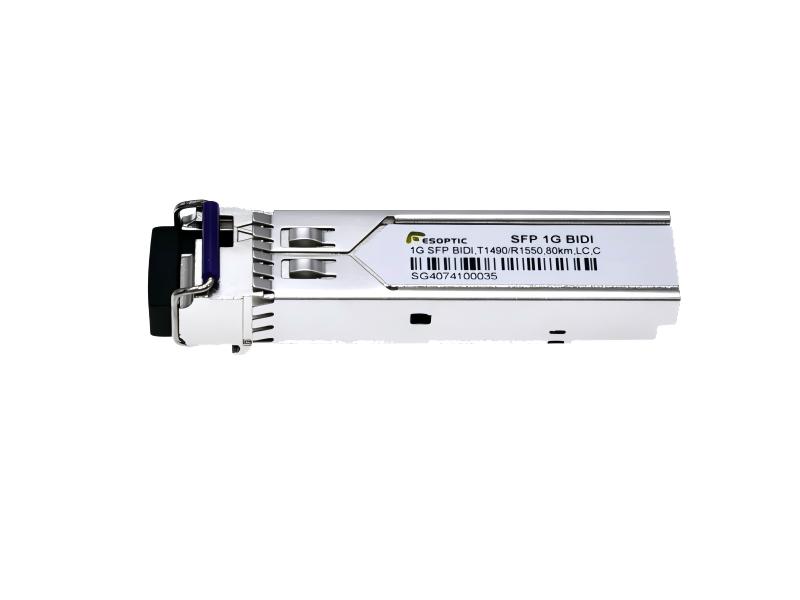

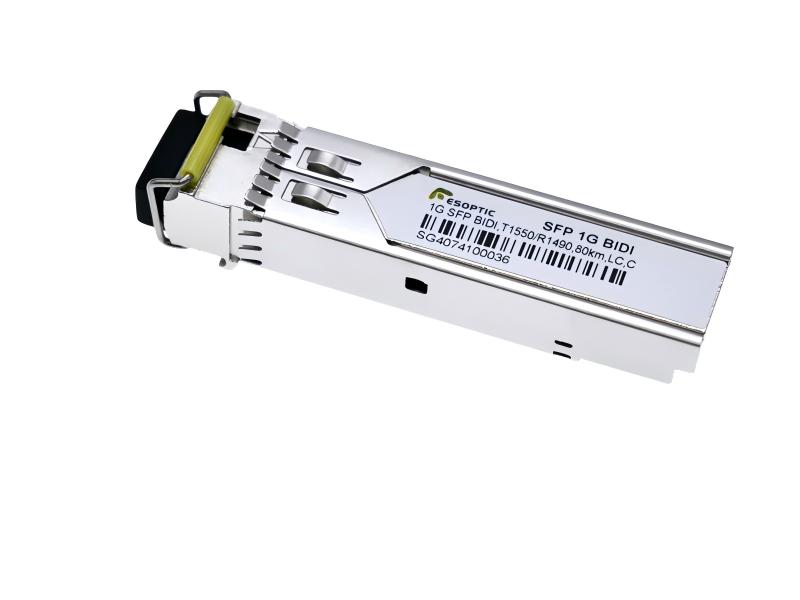

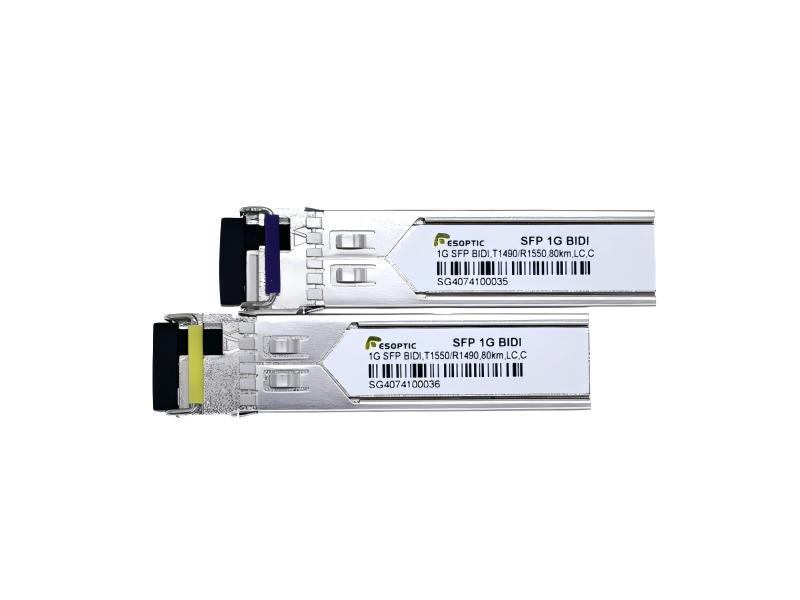

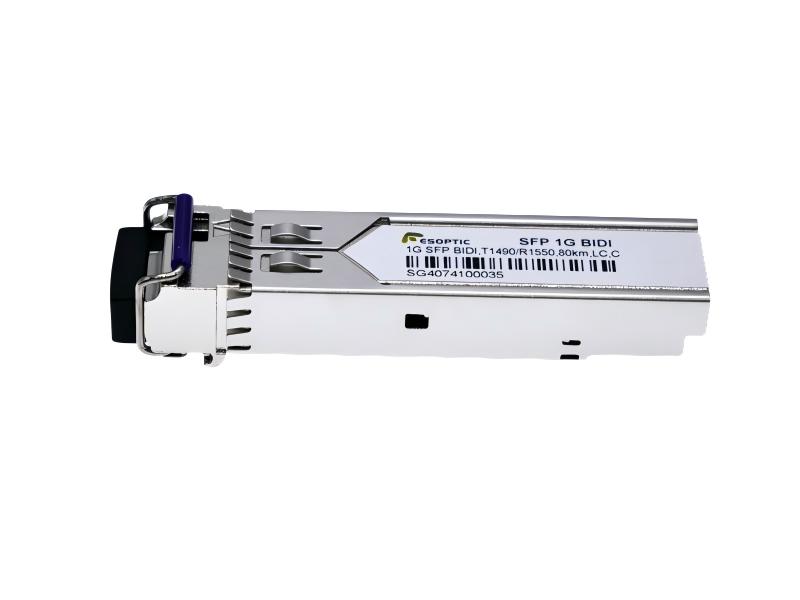

| Part Number | ESGCLB45-K80C/ESGCLB54-K80C | Distance | 80km |
| Form Factor | SFP | Connector | sole LC |
| Wavelength | 1490/1550 | Transmitter | DFB |
| Receiver | APD | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <1.5W | Protocol | 1.25G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Up to 1.25Gbps Data Links
1550nm(1490nm) DFB laser transmitter and PIN/TIA receiver
Maximum link length of 80km on 9/125um SMF
Hot-pluggable SFP footprint
LC receptacles
Low power dissipation
RoHS compliant and lead-free
Support Digital Diagnostic Monitor interface
Single +3.3V power supply
Compliant with SFF-8472
Product Highlights
Experience unparalleled connectivity with our 1.25G Bidi 80km solution, a versatile 1GB SFP designed for long-distance data transmission. This 1GB SFP Bidi 80km leverages cutting-edge bidirectional technology to double the effective transmission distance while maintaining high-speed performance. Suitable for both 1GB 80km applications and beyond, our product seamlessly integrates with existing network systems, ensuring compatibility with Mini GBIC and Mini GBIC SFP standards. Ideal for backbone networks requiring extensive reach and robust data integrity, this 1.25G Bidi module offers a cost-effective and efficient way to expand your network's capabilities.
Point-to-Point Fiber Optic Links
The 1.25G Bidi 80km optical module is designed for point-to-point fiber optic links, providing reliable and high-performance data transmission over distances of up to 80 kilometers. It is ideal for applications in telecommunications, data centers, and enterprise networks that require long-distance connectivity. The module's bidirectional design (BIDI) allows both transmit and receive data to be sent over a single fiber strand, maximizing fiber utilization and reducing infrastructure costs, making it an ideal solution for cost-effective, long-distance communication.
Emergency Communication Networks
The 1.25G Bidi 80km module is often used in emergency communication networks, where reliable, long-distance data transmission is critical for coordinating rescue efforts and transmitting vital information during disasters. It connects emergency response teams, command centers, and affected areas, ensuring fast and efficient communication over distances of up to 80 kilometers. This optical module is designed to provide uninterrupted service even in challenging conditions, making it an essential tool for disaster recovery and emergency management systems.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
