| Part Number | ESGCLB55-K80I | Distance | 80km |
| Form Factor | SFP | Connector | LC duplex |
| Wavelength | 1550nm | Transmitter | DFB |
| Receiver | PIN | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <1.2W | Protocol | 1.25G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Up to 1.25Gbps Data Links
1550nm DFB laser transmitter and APD/TIA receiver
Maximum link length of 120km on 9/125um SMF
Hot-pluggable SFP footprint
Duplex LC receptacles
Low power dissipation
RoHS compliant and lead-free
Support Digital Diagnostic Monitor interface
Single +3.3V power supply
Compliant with SFF-8472
Product Highlights

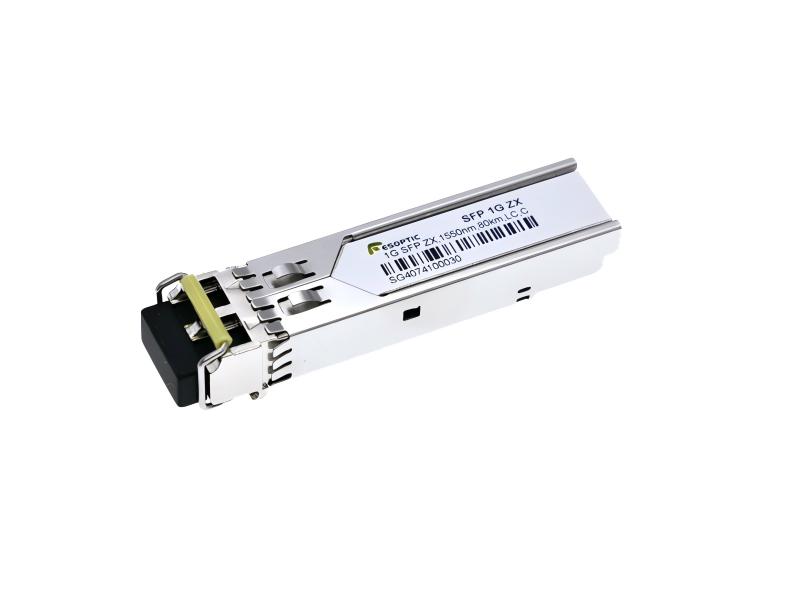

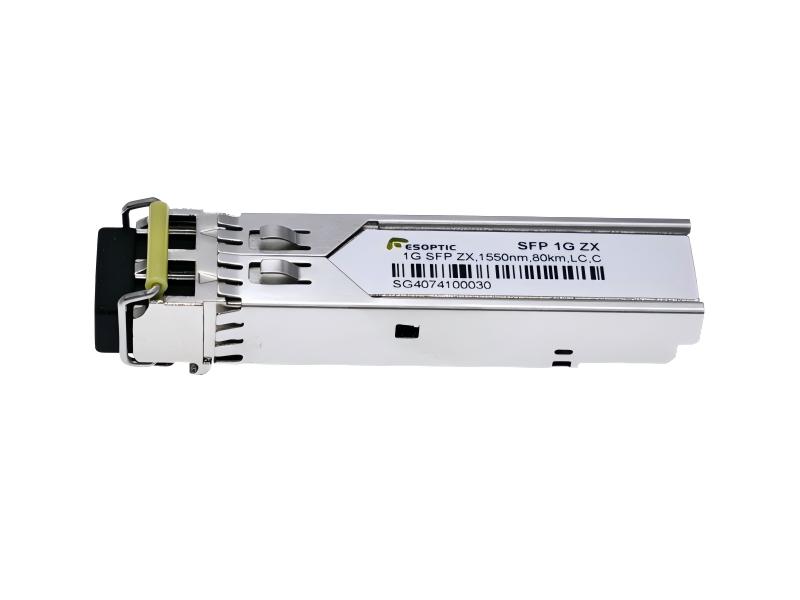

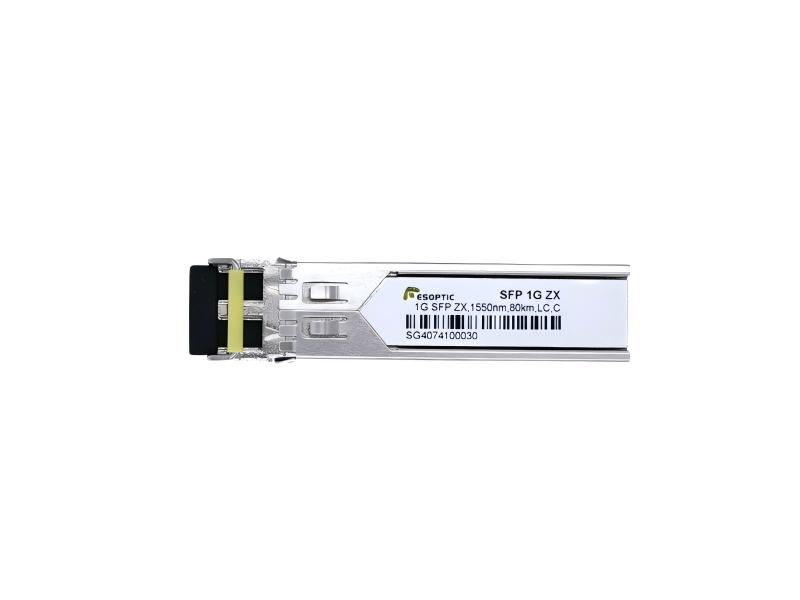

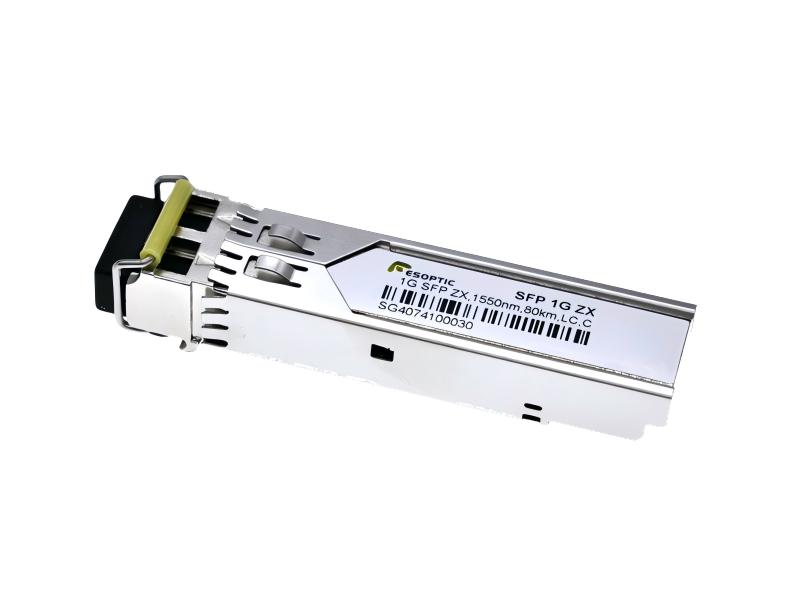

Introducing our 1.25G SFP 1550nm 80km LC module, a premium 1G 80KM solution designed for long-haul communications. As an 80KM transceiver, it excels in transmitting data over vast distances with minimal signal loss, ensuring reliable and high-speed connectivity. Compatible with industry-standard GLC-ZX-SMD specifications, this SFP Module 80km integrates seamlessly into existing networks, providing a cost-effective upgrade. Ideal for backbone and metro networks, the 1G SFP leverages advanced optics to deliver consistent performance, making it the go-to choice for enterprises seeking robust, scalable network infrastructure.
Military and Defense Networks
The 1.25G SFP 1550nm 80km LC module is often used in military and defense applications where secure, long-distance communication is essential. It supports high-speed data transmission between remote military bases, command centers, and communication hubs, ensuring that critical information is transmitted reliably over long distances. The module’s 80km range and secure fiber optic transmission make it suitable for deployment in defense communication networks, where reliability and security are paramount.
Cable Television (CATV) Networks
The 1.25G SFP 1550nm 80km LC module is an ideal solution for cable television (CATV) networks that require long-distance signal transmission between headends and remote locations. It ensures high-quality video, audio, and data transmission over fiber optic cables, providing seamless service to subscribers even in hard-to-reach areas. The module’s 80km range allows cable providers to extend their coverage efficiently, offering a cost-effective solution for delivering digital TV and internet services.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
