| Part Number | ESGCLC51-Z04C | Distance | 40km |
| Form Factor | SFP | Connector | LC/UPC |
| Wavelength | 1510-1610nm | Transmitter | DFB |
| Receiver | PIN | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <1.2W | Protocol | 1.25G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Up to 1.25Gbps Data Links
The DFB laser transmitter and PIN/TIA receiver
Up to 80km on 9/125um SMF
Hot-pluggable SFP footprint
Duplex LC/UPC type pluggable optical interface
Low power dissipation
Metal enclosure, for lower EMI
RoHS compliant and lead free
Support Digital Diagnostic Monitor Interface
Single +3.3V power supply
Compliant with SFF-8472
Product Highlights

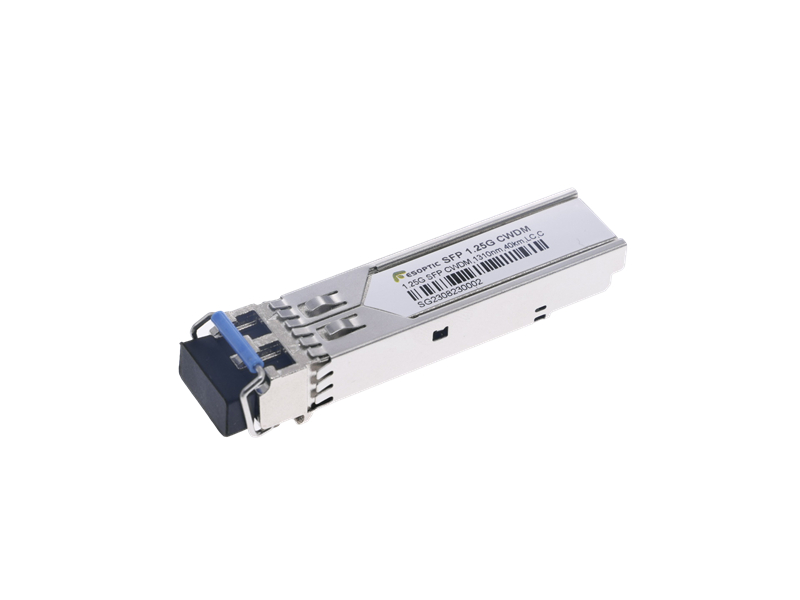

Discover the ultimate efficiency and reliability with our 1.25G SFP CWDM 1510-1610nm 40km LC. This CWDM SFP Module combines cutting-edge technology with seamless integration capabilities, making it a must-have for high-performance networks. As a CWDM SFP Transceiver, it supports a wide wavelength range of 1510-1610nm, ensuring robust signal transmission over long distances up to 40km. Perfect for upgrading your existing infrastructure, our 40km CWDM SFP is fully compatible with CWDM 1G systems, providing seamless integration and unmatched performance. Experience the future of data transmission with our top-tier CWDM SFP solution.
Broadband Access Networks
The 1.25G SFP CWDM 1510-1610nm 40km LC module is widely deployed in broadband access networks to deliver high-speed internet and other services to homes and businesses. By utilizing CWDM technology, this module enables multiple data streams to travel on a single fiber, optimizing the use of available fiber infrastructure. It is commonly used in metropolitan fiber access networks, connecting remote customer premises to central office networks, providing cost-effective, high-speed access to broadband services such as video, data, and voice.
Oil & Gas Industry
The 1.25G SFP CWDM 1510-1610nm 40km LC module is also used in the oil and gas industry for remote monitoring and communication between offshore platforms, drilling rigs, and onshore facilities. Its long-distance capability ensures that critical data from sensors, security cameras, and operational systems can be transmitted in real-time to centralized monitoring stations for analysis. The CWDM technology allows for efficient use of the fiber infrastructure, supporting the transmission of multiple signals without requiring additional fiber installations, which is particularly important in challenging environments such as offshore or remote locations.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
