| Part Number | ESHKLB31-K10C | Distance | 10km |
| Form Factor | SFP+ | Connector | LC duplex |
| Wavelength | 1310nm | Transmitter | DFB |
| Receiver | PIN | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <1W | Protocol | 10G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Up to 10.3125Gbps Data Links
1310nm DFB laser transmitter and PIN/TIA receiver
Maximum link length of 10km on 9/125um SMF
Hot-pluggable SFP footprint
Duplex LC receptacles
Low power dissipation
RoHS compliant and lead-free
Support Digital Diagnostic Monitor interface
Single +3.3V power supply
Compliant with SFF-8472
Product Highlights

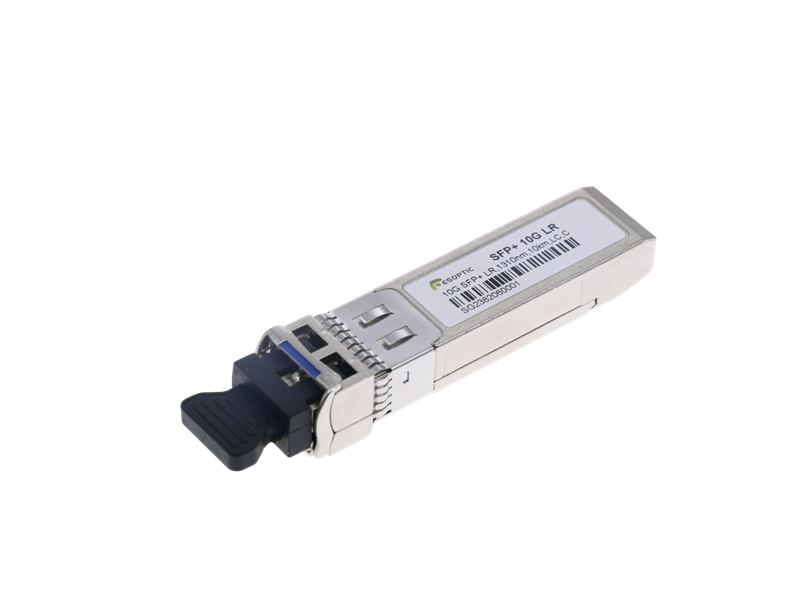

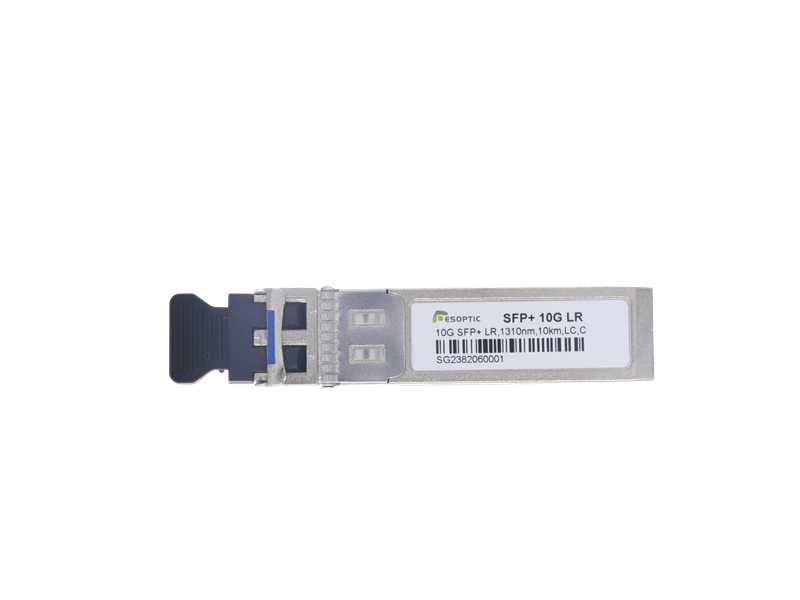

Experience unparalleled performance with our 10G SFP+ LR 1310nm 10km LC, a cutting-edge solution designed for long-reach connectivity. This SFP 10GB LR transceiver seamlessly integrates into your network infrastructure, leveraging the robustness of Single Mode SFP 10G technology. Boasting a transmission distance of up to 10 kilometers over Single Mode Fiber, our SFP 10G LR ensures reliable, high-speed data transfers. Whether you're upgrading your existing setup or deploying a new network, the 10GB SFP+ Transceiver offers unparalleled versatility and efficiency, making it an ideal choice for data centers and enterprise networks alike.
High-Speed Data Replication
The 10G SFP+ LR 1310nm 10km LC module is widely used for high-speed data replication across multiple data centers or backup sites. It provides a reliable and efficient optical link for replicating critical business data over distances up to 10 kilometers. This module is crucial for disaster recovery, data protection, and maintaining business continuity, ensuring that copies of mission-critical data are safely and quickly replicated in real-time for recovery in the event of system failures.
Fiber Backhaul for 4G/5G Networks
The 10G SFP+ LR 1310nm 10km LC module is essential for fiber backhaul in 4G and 5G wireless communication networks. It enables reliable, high-speed data transfer between base stations, network aggregation points, and core networks over distances up to 10 kilometers. This optical module is critical for supporting the growing data demands of modern mobile networks, facilitating the backhaul of large amounts of traffic generated by mobile devices and ensuring seamless connectivity in urban, suburban, and rural areas.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
