| Part Number | ESHKLM85-S30C | Distance | 300m |
| Form Factor | SFP+ | Connector | LC duplex |
| Wavelength | 850nm | Transmitter | VCSEL |
| Receiver | PIN | Media | Multi-Mode Fiber(MMF) |
| Power Consumption | <1W | Protocol | 10G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Up to 10.3125Gbps Data Links
850nm VCSEL laser transmitter and PIN/TIA receiver
Maximum link length of 300m on 50/125um MMF OM3
Hot-pluggable SFP+ footprint
Duplex LC receptacles
Low power dissipation
RoHS compliant and lead-free
Support Digital Diagnostic Monitor interface
Single +3.3V power supply
Compliant with SFF-8472
Product Highlights

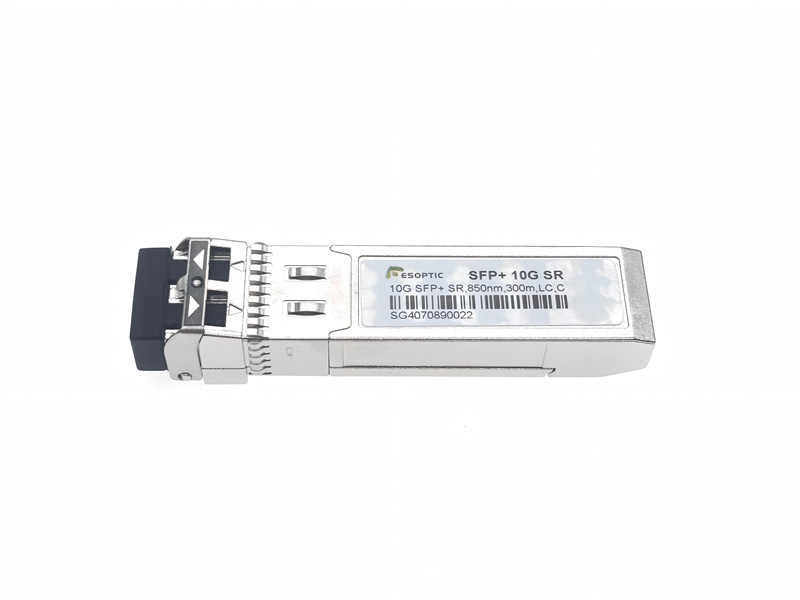

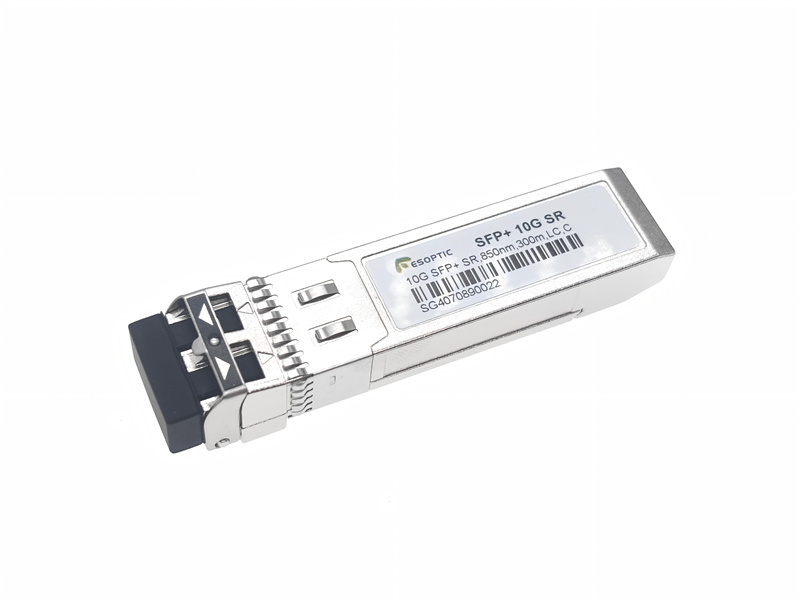

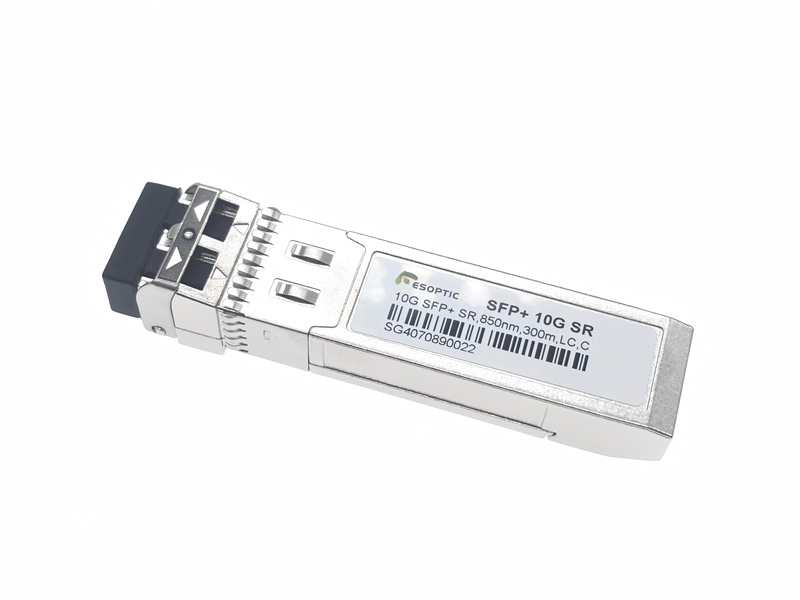

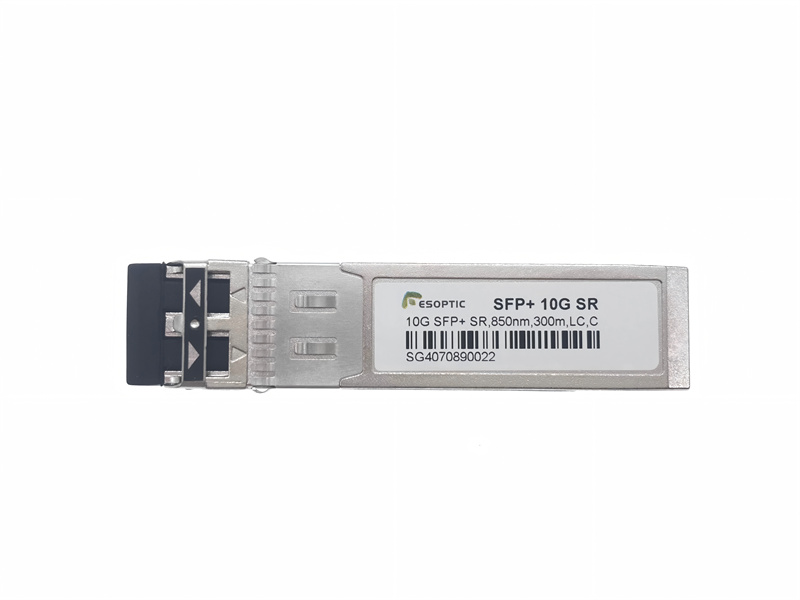

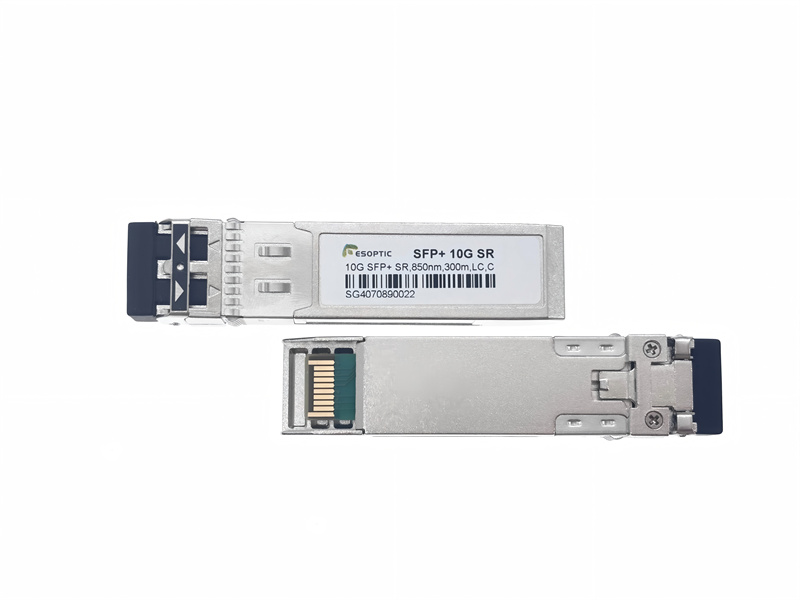

The 10G SFP+ SR 850nm 300m LC Transceiver is a high-performance optical module designed for short-range data transmission in high-speed network environments. Supporting the SFP 10GB SR and SFP 10G SR standards, this module provides reliable and efficient data transfer over multimode fiber (MMF) for distances up to 300 meters. Operating at 850nm, it ensures high bandwidth, low latency, and excellent signal integrity, making it an ideal choice for 10G multimode SFP applications. This compact and energy-efficient transceiver is perfect for use in data centers, enterprise networks, and server-to-switch connections, offering seamless integration into high-density network environments. Whether for 10G Multimode SFP applications or high-performance networking needs, this module delivers reliable connectivity and exceptional performance.
Video Surveillance Networks
The 10G SFP+ SR optical module is ideal for video surveillance systems, providing reliable and high-speed connectivity for cameras, NVRs (Network Video Recorders), and video servers. It ensures smooth transmission of high-definition (HD) and ultra-high-definition (UHD) video feeds over short to medium distances, ensuring high-quality video surveillance and monitoring.
Campus and Institutional Networks
The 10G SFP+ SR module is ideal for campus networks, where it provides reliable, high-speed connectivity between network switches, servers, and workstations across buildings. It supports educational institutions, research labs, and large enterprises in creating a high-performance network infrastructure for data transfer, online learning, and collaboration.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
