| Part Number | ESHKLC41-K40C | Distance | 40km |
| Form Factor | SFP+ | Connector | LC duplex |
| Wavelength | 1270-1450nm | Transmitter | EML |
| Receiver | PIN | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <1.2W | Protocol | 10G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Up to 11.3Gbps Data Links
Cooled CWDM EML laser transmitter and PIN/TIA receiver
Maximum link length of 40km on 9/125um SMF
Hot-pluggable SFP footprint
Duplex LC receptacles
Low power dissipation
RoHS compliant and lead-free
Support Digital Diagnostic Monitor interface
Single +3.3V power supply
Compliant with SFF-8472
Product Highlights

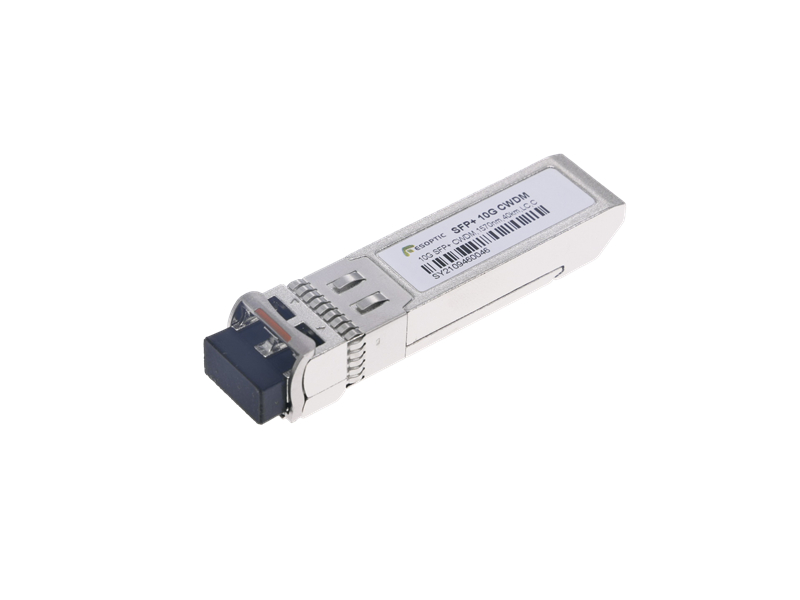

Discover the ultimate performance with our 10G SFP+ CWDM 1270-1450nm 40km transceiver module. As a cutting-edge CWDM SFP 10G solution, this transceiver seamlessly integrates high-speed data transmission with extended reach capabilities, offering robust and reliable connectivity over 40 kilometers. Engineered with advanced CWDM technology, our CWDM Transceiver ensures minimal signal loss and superior interference resistance within the 1270-1450nm wavelength range. Perfect for dense wavelength division multiplexing (DWDM) networks, this 10G CWDM 40km module stands out as the ideal choice for demanding network infrastructures requiring both speed and distance.
Fiber-To-The-Home
The 10G SFP+ CWDM 1270-1450nm 40km module is extensively used in Fiber-To-The-Home (FTTH) networks to support the high-speed data, voice, and video services demanded by consumers. This optical module ensures reliable, high-capacity fiber connections between central offices and end-users, enabling service providers to deliver broadband internet, IPTV, and VoIP services efficiently over medium-range distances.
Private Network Solutions for Enterprises
The 10G SFP+ CWDM 1270-1450nm 40km module is used in private network setups for enterprises, providing secure and reliable communication between offices and remote locations. This optical module ensures high-speed, long-distance connectivity while offering scalable bandwidth through CWDM multiplexing. It is ideal for businesses with high data traffic and mission-critical applications, ensuring optimal performance and data security.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
