| Part Number | ESWSMM85-S10C | Distance | 10km |
| Form Factor | QSFP28 | Connector | LC duplex |
| Wavelength | 1310nm | Transmitter | DFB |
| Receiver | PIN | Media | Single-Mode Fiber?(SMF) |
| Power Consumption | <6.5W | Protocol | 100G Base Ethernet |
| Case Temperature(℃) | C: 0℃ to +70℃ / I: -40℃ to +85℃ |
Product Features
Data rate: 400Gbps with PAM4 encoding.
Supports QSFP-DD MSA standard.
High-speed I/O electrical interface (400GAUI-8).
Maximum reach: 100m on OM4 multimode fiber.
8x VCSEL arrays and PIN PDs for parallel optical channels.
MPO-16/APC optical connector for reliable connections.
Advanced power consumption: <12W.
Operating temperature range: Commercial: 0°C to 70°C.
Product Highlights

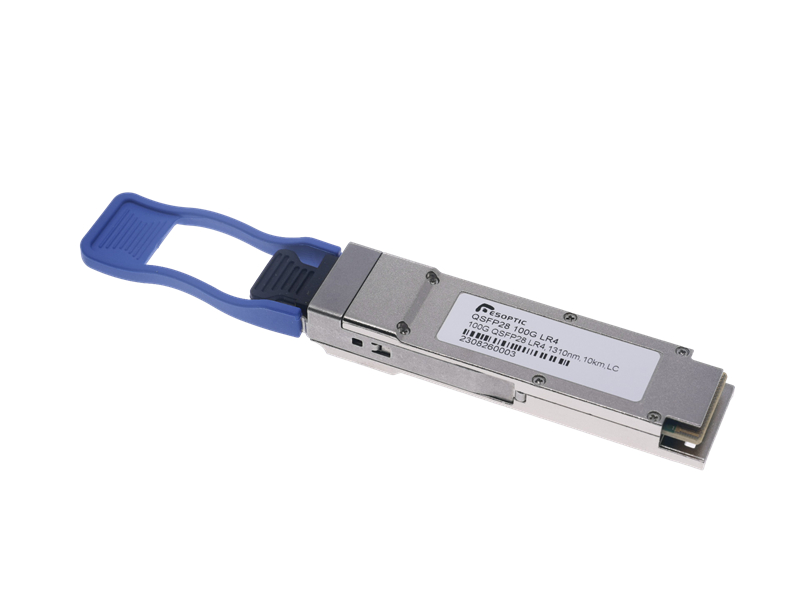

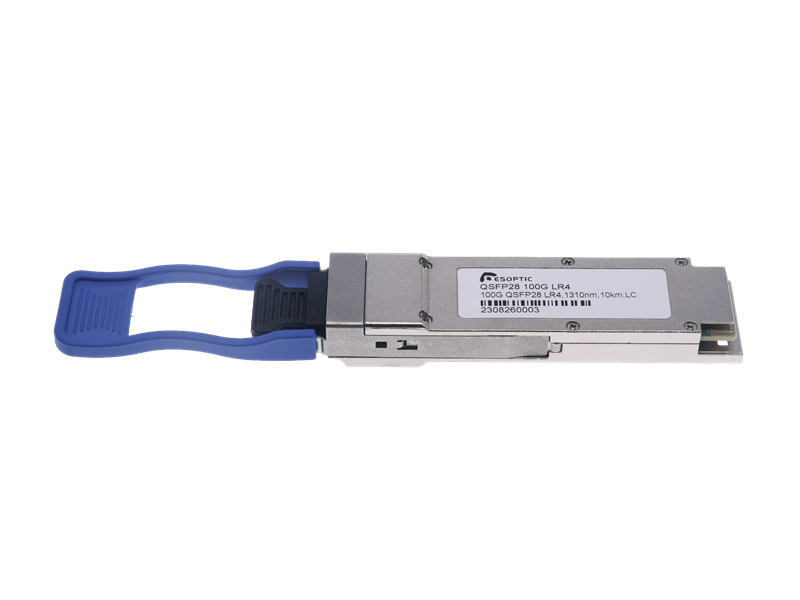

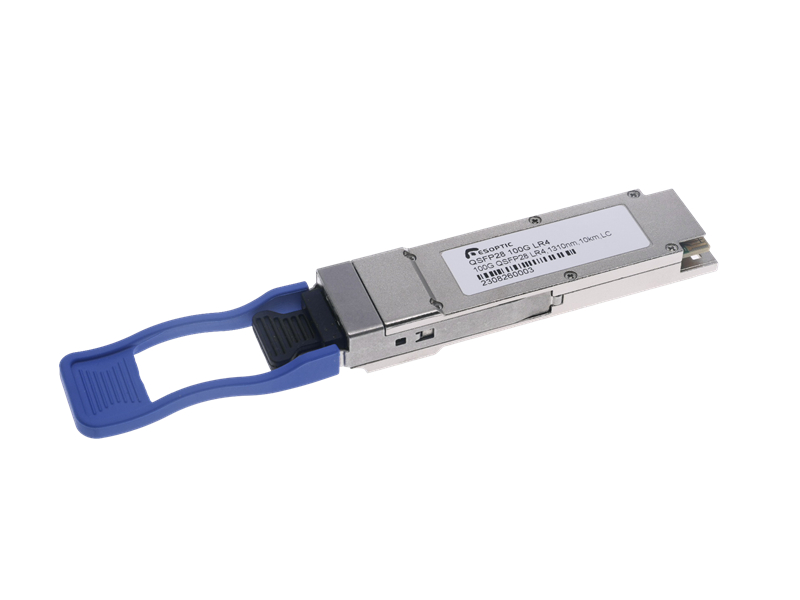

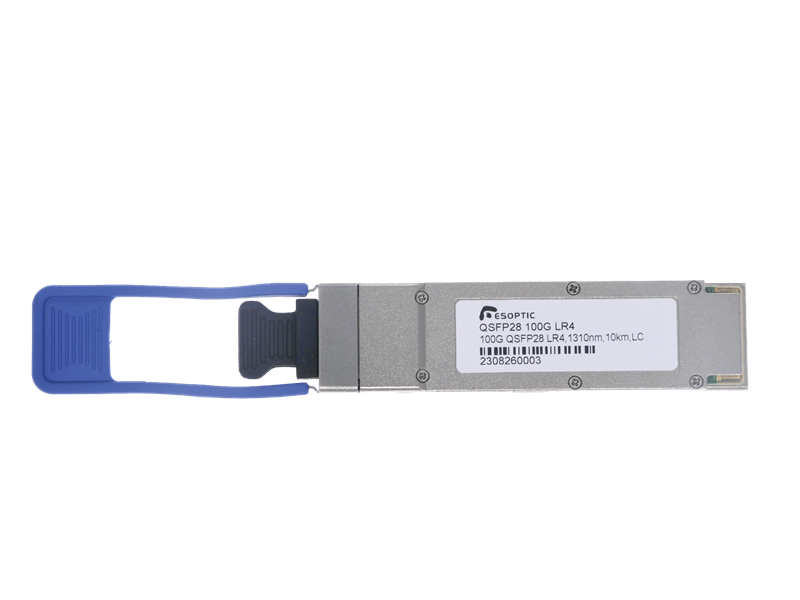

Unleash the power of high-speed connectivity with our state-of-the-art 100G QSFP28 LR4 1310nm 10km module. Engineered for long-reach applications, the 100G LR4 module seamlessly integrates into your network infrastructure, providing unmatched bandwidth and reliability. Our QSFP28 LR4 solution is the perfect choice for data centers seeking to maximize their throughput and efficiency. Whether you're looking for QSFP 100g LR4 or specifically QSFP28 100Gbase LR4, our 100G Module ensures low latency and robust performance over 10 kilometers. Elevate your network capabilities with our cutting-edge 100G QSFP28 LR4 technology today!
Telecom and Carrier Networks
The 100G QSFP28 LR4 is an ideal solution for telecom and carrier networks, supporting high-speed optical links for backbone connections between network hubs, regional offices, and customer premises. It enables reliable, long-distance data transmission, supporting a wide range of services, including voice, video, and broadband internet, with minimal latency and high throughput.
Metropolitan Area Networks (MANs)
The 100G QSFP28 LR4 module is designed for metropolitan area networks (MANs), providing high-capacity and long-distance connections between regional data centers, enterprise campuses, and telecom nodes. It enables fast and efficient data transmission over 10km, making it ideal for urban connectivity, supporting the growing demand for internet services in metropolitan areas.
Rigorous Industrial Product Testing
ESOPTIC is equipped with a comprehensive range of professional testing equipment designed to assess various parameters of optical products.
This ensures the highest performance, quality, and stability of optical transmission in all of our products.
Product packaging specification
Packing of module products
Put the qualified products into the corresponding model blister box packaging.
The bottom, surface and side of the carton are filled with one piece of anti-static foam to protect the product.According to the requirements of the packing quantity, put the blister box box of the product into the packaging carton. If the space between the blister boxes is large, use a piece of anti-static foam to put it in the middle. The empty space in the end box must be filled with anti-static foam to ensure that it will not be damaged during transportation.
The outer case label is attached to the side position of the outer case,Label the outer case after sealing.
At the time of delivery, the entire outer box should be wrapped with at least 2 layers of wrapping film protection.
